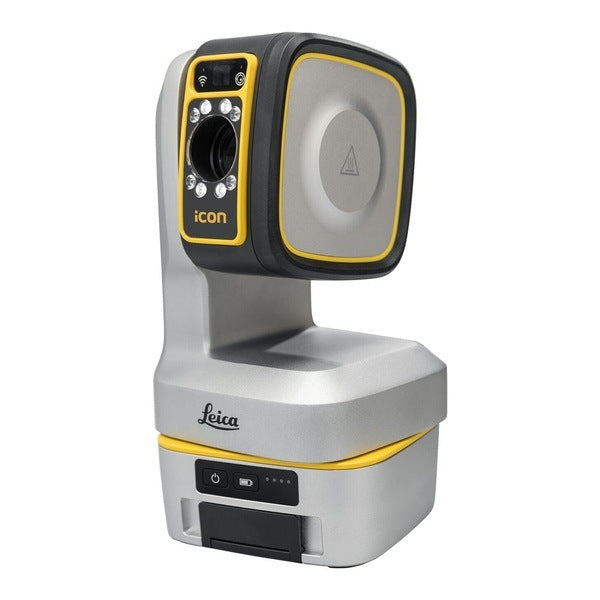

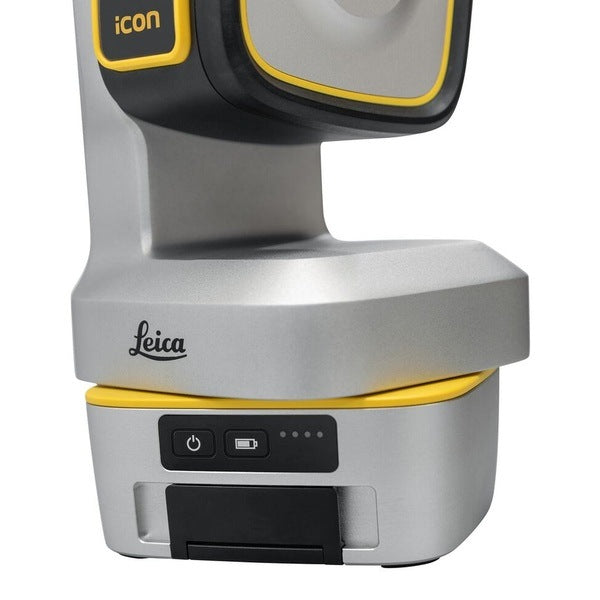

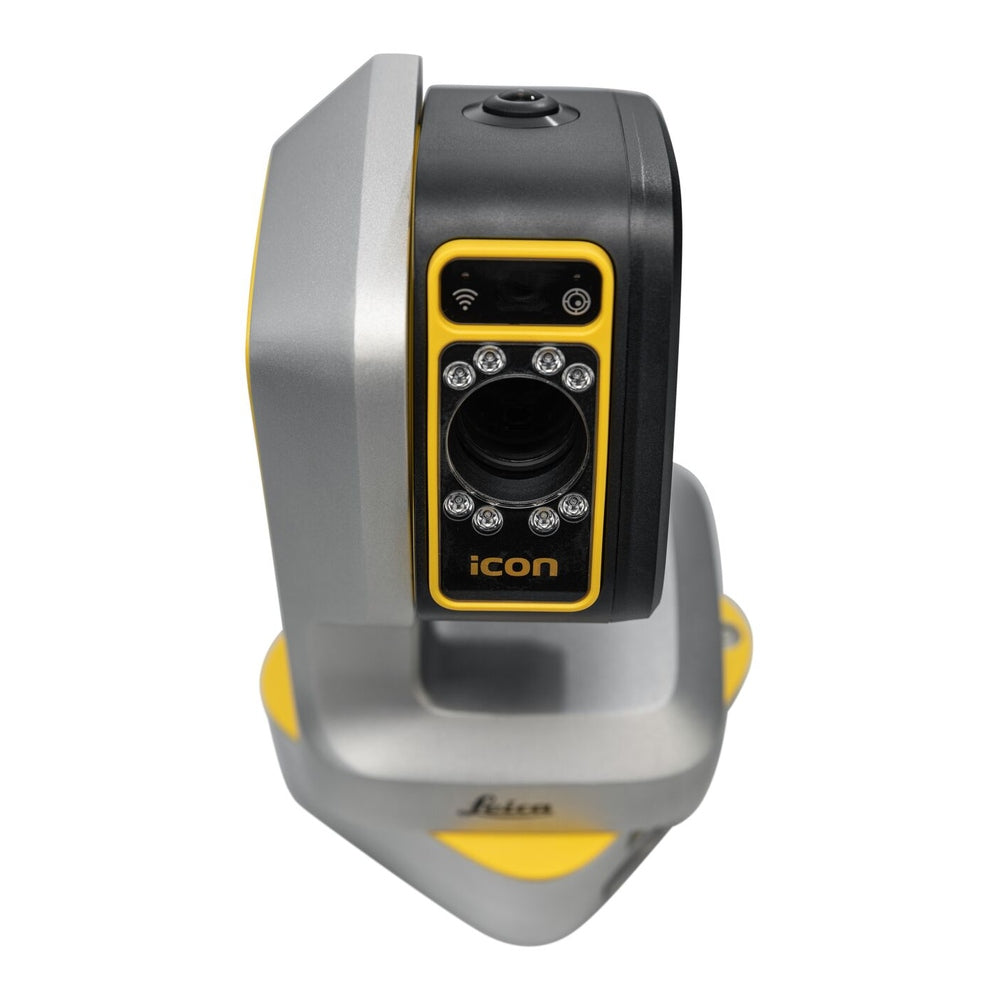

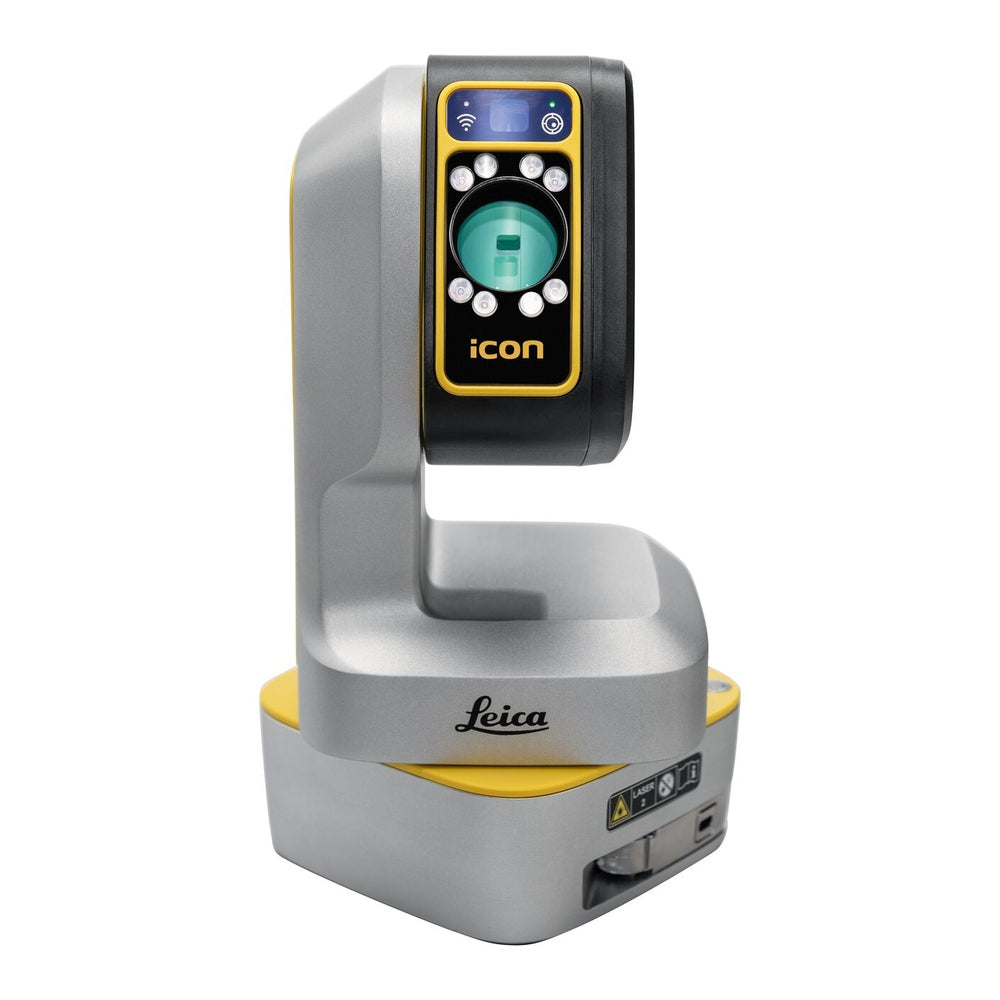

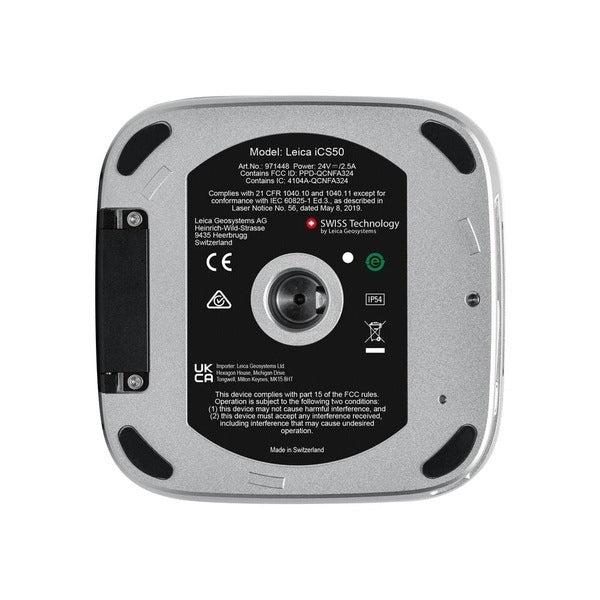

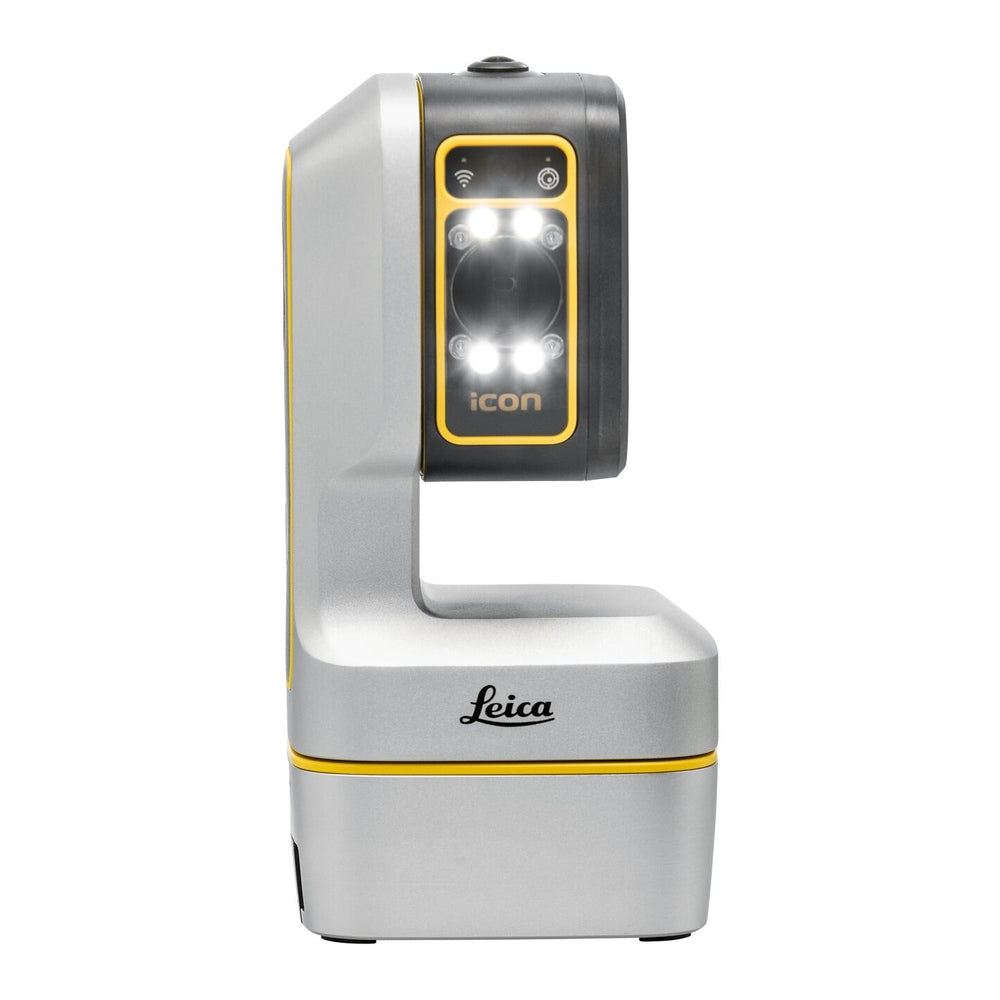

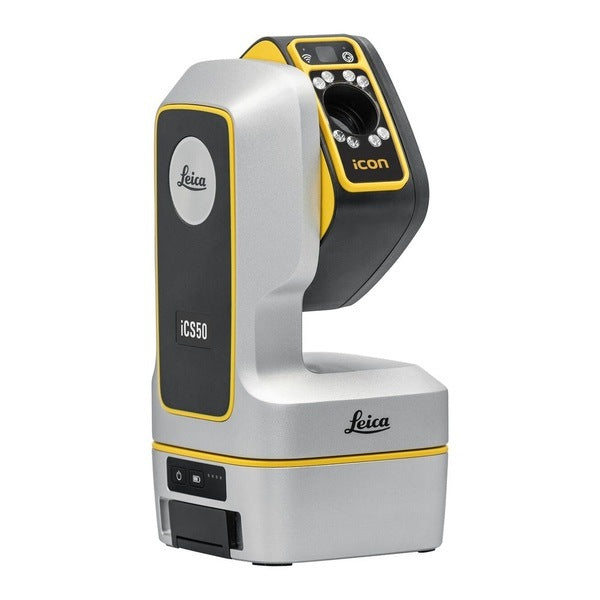

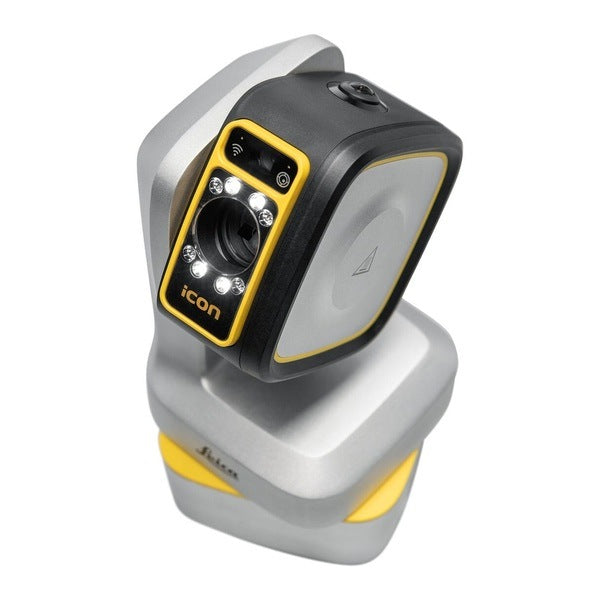

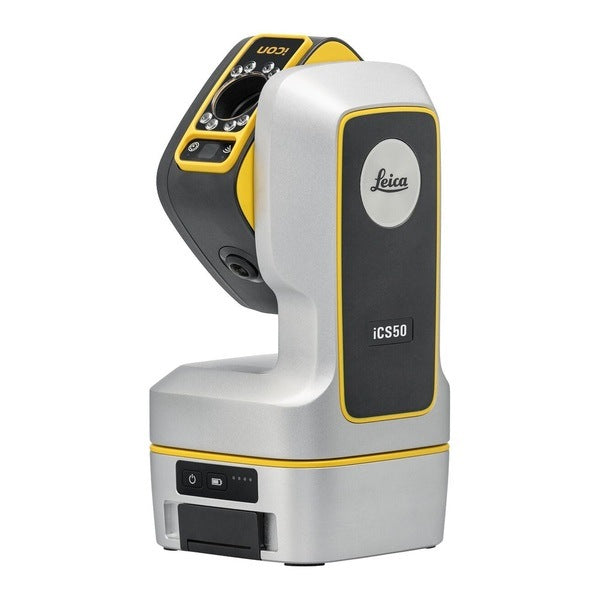

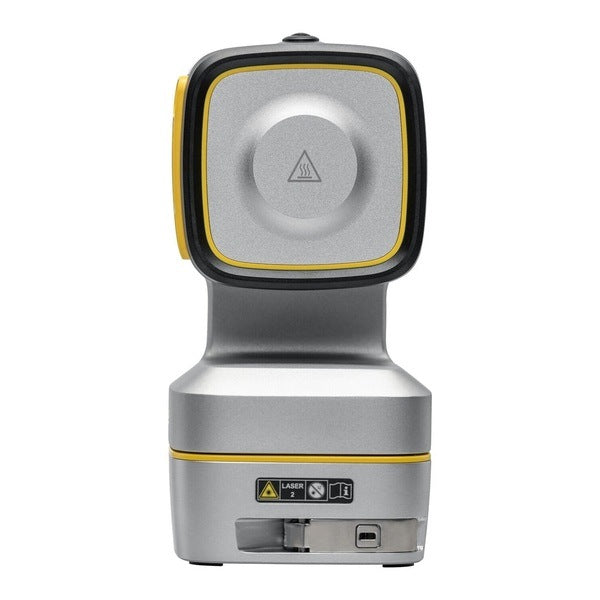

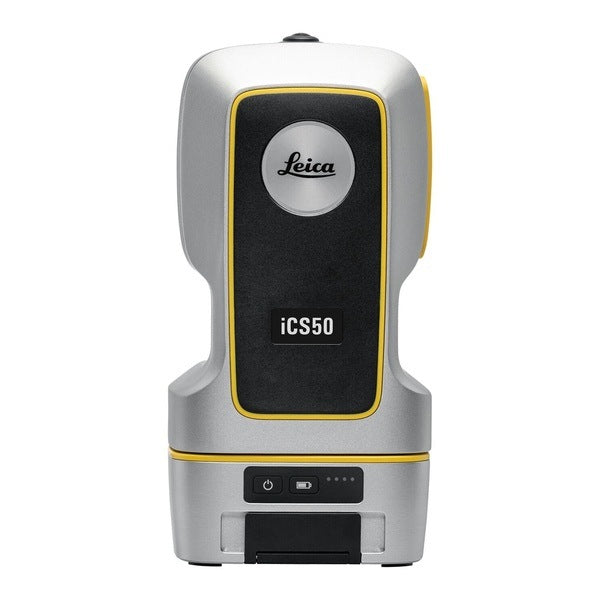

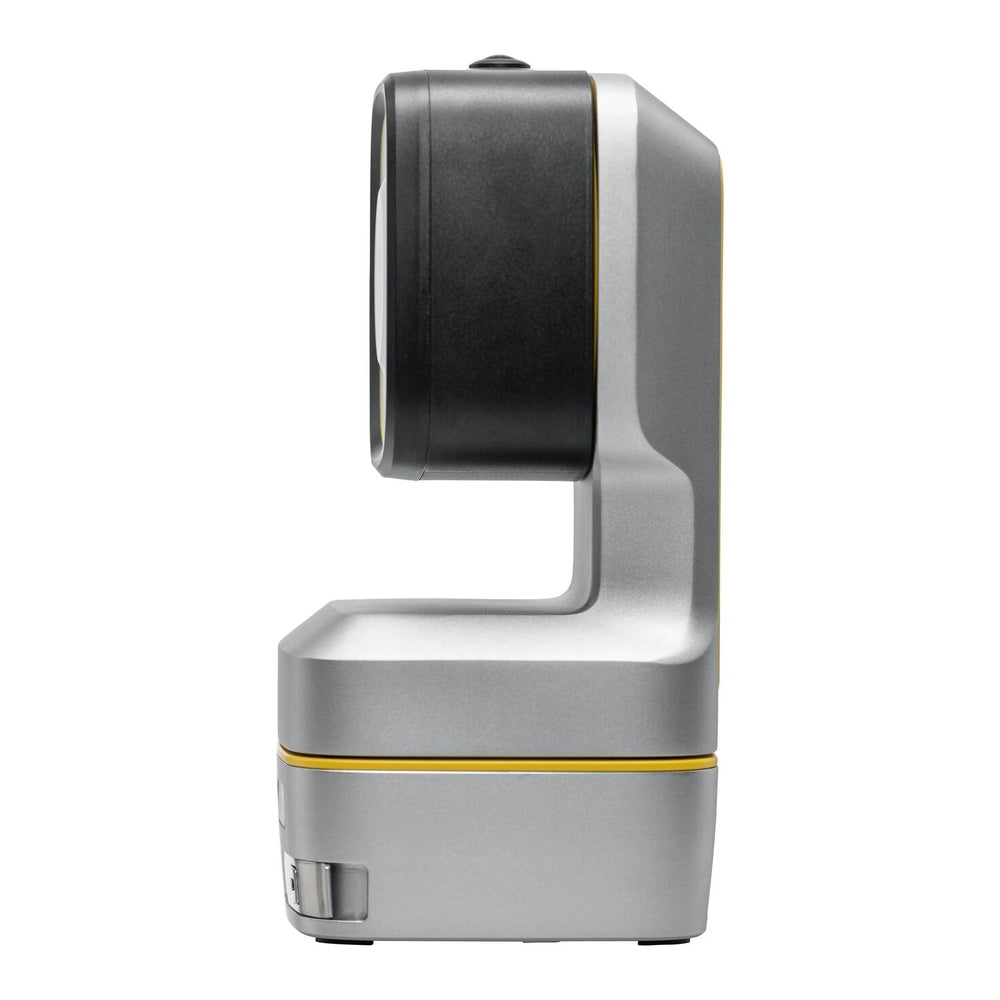

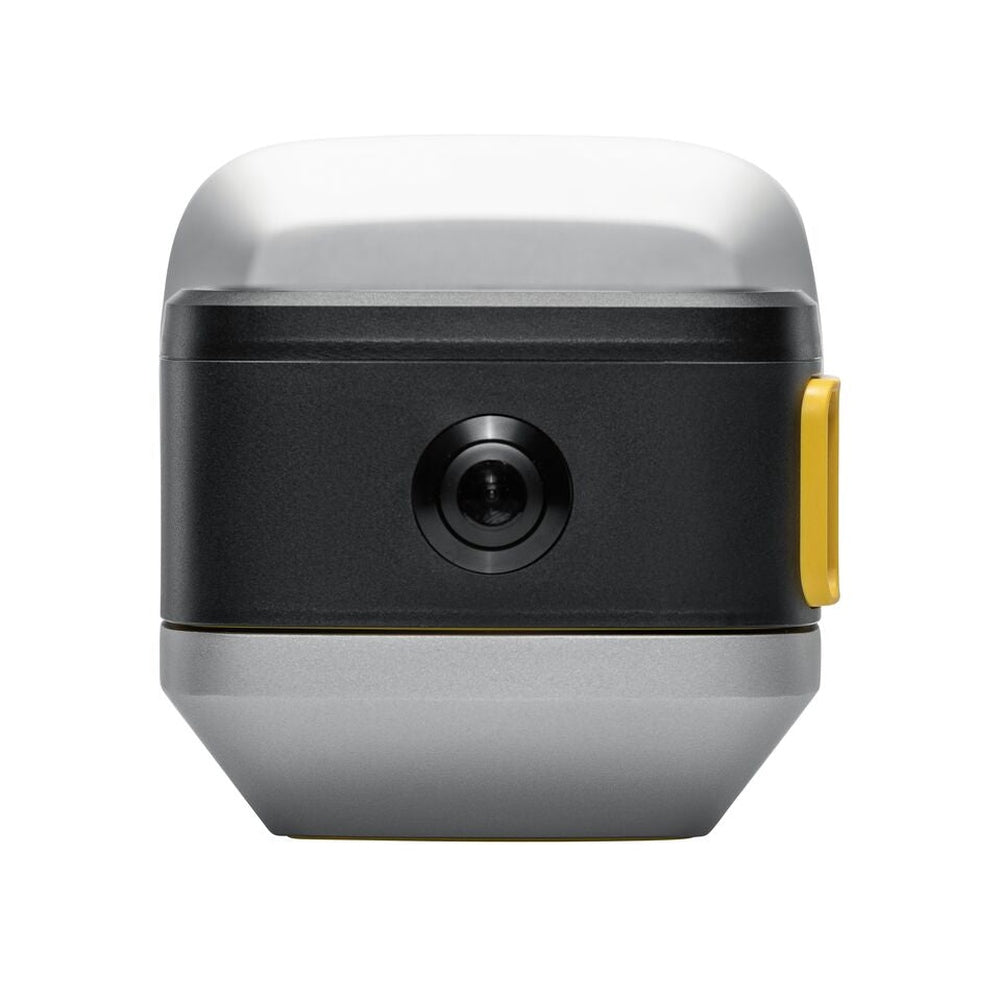

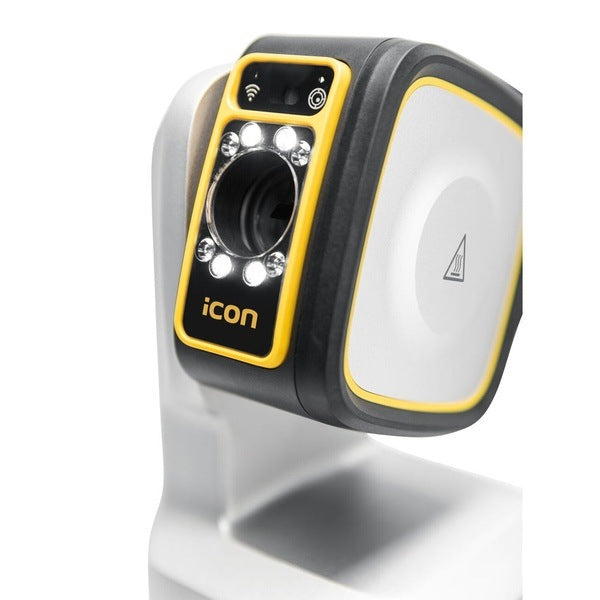

The robotic Leica iCON iCS50 is a state-of-the-art construction tool to perform both simple and complex layout and 3D measurement tasks. The handling is easy to learn and immediately efficient to use. In combination with the smart accessories Leica vPole and Leica vPen, this becomes a very productive solution, as the time required for layout and measurement tasks, as well as the risk o...
The robotic Leica iCON iCS50 is a state-of-the-art construction tool to perform both simple and complex layout and 3D measurement tasks. The handling is easy to learn and immediately efficient to use. In combination with the smart accessories Leica vPole and Leica vPen, this becomes a very productive solution, as the time required for layout and measurement tasks, as well as the risk of errors, is reduced to a minimum.
Scope of Delivery:
- Leica iCON iCS50
- Leica iCON trades for Templating software
- Leica vPen
- Charger for indoor use
- Leica CSX8 tablet incl. pouch
- RC10 remote control
- GZM3 target plate
- vTarget plates incl. stands
- vTarget stickers
- Carry case
- Leica CTP108 Carbon tripod
Technical Data
| 3D Point Accuracy | ||
|---|---|---|
Laser Combination of angle and distance measurement
|
1.0 mm @ 10 m (0.04 in @ 33 ft)
2.0 mm @ 50 m (0.08 in @ 164 ft) 8.0 mm @ 250 m (0.31 in @ 820 ft)* |
1.0 mm @ 10 m (0.04 in @ 33 ft)
2.5 mm @ 50 m (0.10 in @ 164 ft) 10.5 mm @ 250 m (0.41 in @ 820 ft)* |
vPen |
1.0 mm @ 10 m (0.04 in @ 33 ft)
|
1.5 mm @ 10 m (0.06 in @ 33 ft)**
|
vSphere |
1.0 mm @ 10 m (0.04 in @ 33 ft)
|
3.0 mm @ 50 m (0.12 in @ 164 ft)**
|
vPole tip |
3.0 mm @ 50 m (0.12 in @ 164 ft)****
|
3.0 mm @ 50 m (0.12 in @ 164 ft)****
|
| Angular Measurement | ||
Standard Deviation ISO 17123-3 Accuracy Hz and V
|
3" (0.93 mgon)
|
5" (1.54 mgon)
|
Working range |
horizontal (Hz): 360°, vertical (V): 290°
|
horizontal (Hz): 360°, vertical (V): 290°
|
| Distance Measurement | ||
Reflectorless range (Kodak White) Kodak White, 90% reflective
|
0.3 to 50 / 250 m (0.98 - 164 / 820 ft)*
|
0.3 to 50 / 250 m (0.98 - 164 / 820 ft)*
|
Reflectorless Range (Kodak Gray) Kodak Gray, 18% reflective
|
0.3 to 50 / 120 m (0.98 - 164 / 394 ft)*
|
0.3 to 50 / 120 m (0.98 - 164 / 394 ft)*
|
Standard prism (GPR1) Range |
3.0 to 50 / 250 m (9.84 - 164 / 820 ft)*
|
3.0 to 50 / 250 m (9.84 - 164 / 820 ft)*
|
Reflective tape (GZM31) Range |
1.0 to 50 / 150 m (3.28 - 164 / 492 ft)*
|
1.0 to 50 / 150 m (3.28 - 164 / 492 ft)*
|
vTarget (CVT3, CVT6) Range |
1.2 to 40 m (3.94 - 131 ft)***
|
1.2 to 40 m (3.94 - 131 ft)***
|
vPen Range |
0.7 to 10 m (2.30 - 33 ft)**
|
0.7 to 10 m (2.30 - 33 ft)**
|
vSphere Range |
1.5 to 50 m (4.92 - 164 ft)**
|
1.5 to 50 m (4.92 - 164 ft)**
|
Non-Prism / Any surface Accuracy |
<1.0 mm @ 10 m (<0.04 in @ 33 ft)
1.5 mm @ 50 m (0.06 in @ 164 ft) 6.0 mm @ 250 m (0.24 in @ 820 ft)* |
1.0 mm @ 10 m (0.04 in @ 33 ft)
1.5 mm @ 50 m (0.06 in @ 164 ft) 6.0 mm @ 250 m (0.24 in @ 820 ft)* |
Standard prism (GPR1) Accuracy |
1.5 mm @ 50 m (0.06 in @ 164 ft)
3.5 mm @ 250 m (0.14 in @ 820 ft)* |
1.5 mm @ 50 m (0.06 in @ 164 ft)
3.5 mm @ 250 m (0.14 in @ 820 ft)* |
Reflective tape (GZM31) Accuracy |
1.5 mm @ 50 m (0.06 in @ 164 ft)
2.5 mm @ 150 m (0.08 in @ 492 ft)* |
1.5 mm @ 50 m (0.06 in @ 164 ft)
2.5 mm @ 150 m (0.08 in @ 492 ft)* |
Laser dot size |
17.2 x 27.3 mm @ 50 m (0.68 in x 1.41 in @ 164 ft)
|
17.2 x 27.3 mm @ 50 m (0.68 in x 1.41 in @ 164 ft)
|
| Automatic Aiming | ||
Standard prism (GPR1) |
3.0 to 250 m (9.84 to 820 ft)*
|
3.0 to 250 m (9.84 to 820 ft)*
|
vTarget |
1.2 to 40 m (3.94 to 131 ft)***
|
1.2 to 40 m (3.94 to 131 ft)***
|
| Camera | ||
Overview camera (diagonal) FOV |
27.6° (4.91 m @ 10 m / 16 ft @ 33 ft) / 12.33 MP
|
27.6° (4.91 m @ 10 m / 16 ft @ 33 ft) / 12.33 MP
|
On-Axis camera (diagonal) FOV |
7.5° (1.31 m @ 10 m / 4.29 ft @ 33 ft) / 12.33 MP
|
7.5° (1.31 m @ 10 m / 4.29 ft @ 33 ft) / 12.33 MP
|
Fish-eye camera (circular) FOV |
~200° (circular) / 13.31 MP
|
~200° (circular) / 13.31 MP
|
Zoom |
16x
|
16x
|
| General | ||
Motorization |
Robotic
|
Motorized (robotic upgrade possible)
|
Direct drives |
180°/s
|
180°/s
|
Tilt compensation range |
±3°
|
±3°
|
Interfaces |
USB-C (2.0), WLAN
|
USB-C (2.0), WLAN
|
Weight |
3.37 kg | 7.43 lb
|
3.37 kg | 7.43 lb
|
Dust / Water / Humidity Rating |
IP54
|
IP54
|
Operating temperature |
-20°C to +50°C | -4°F to +122°F
|
-20°C to +50°C | -4°F to +122°F
|
Charging temperature |
0°C to +60°C | 32°F to +140°F
|
0°C to +60°C | 32°F to +140°F
|
Storage temperature |
-25°C to +70°C | -13°F to +158°F
|
-25°C to +70°C | -13°F to +158°F
|
| Power Management | ||
Battery |
Rechargeable Li-Ion
|
Rechargeable Li-Ion
|
Operating Time |
> 8h
|
> 8h
|
Charging Time |
70% in 1h, 100% in 2h
|
70% in 1h, 100% in 2h
|
| Unit | |
|---|---|
iCS Unit |
|
| Software | |
Included Software |
|
Software Type |
Subscription
|
| Accessories | |
Included Accessories |
|
| Documents | |
Brochure |
|
Technical Data |
|
User Manual |
|
