Collection: Leica LINO
-
Leica Lino P5
Regular price $280.00 USDRegular priceUnit price / per -
Sale Discontinued Item
Leica DISTO D210 Interior Package
Regular price $330.00 USDRegular priceUnit price / per$550.00 USDSale price $330.00 USDSale -

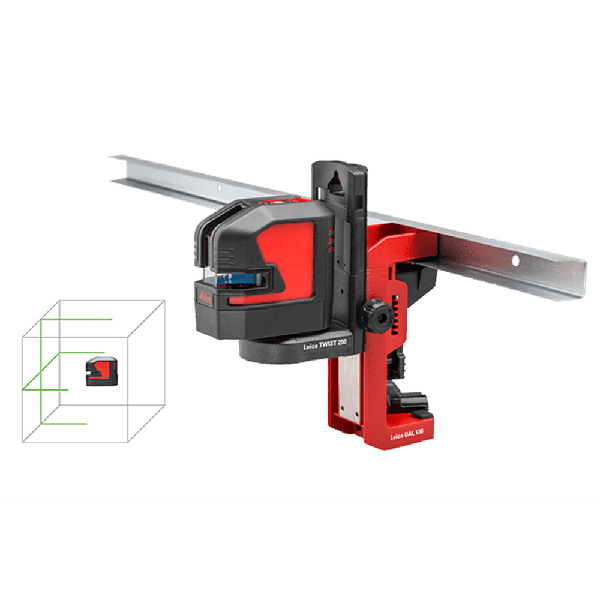

Leica Lino L2
Regular price From $215.00 USDRegular priceUnit price / per -

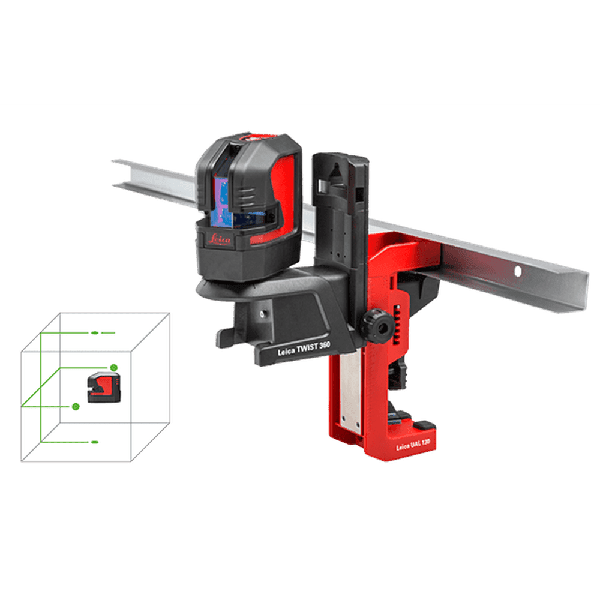

Leica Lino L2P5
Regular price From $475.00 USDRegular priceUnit price / per -

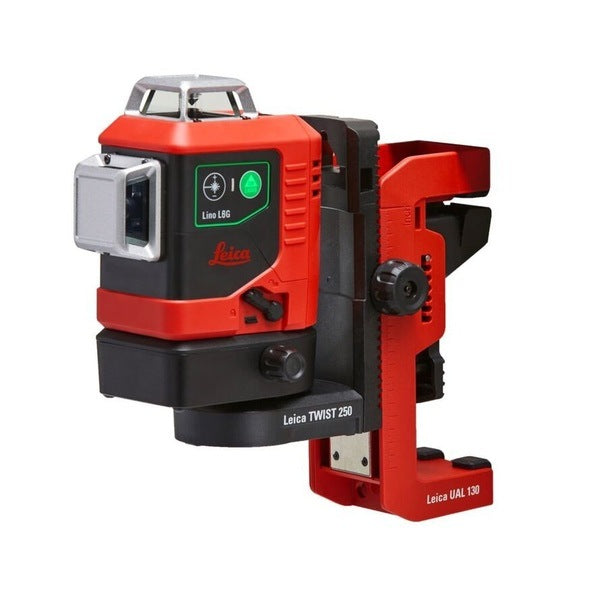

Leica Lino L6
Regular price From $445.00 USDRegular priceUnit price / per -
Leica RGR200
Regular price $240.00 USDRegular priceUnit price / per
Unsure which unit to purchase? Let us help.
Take a look at the table below for some of the most notable differences between the units. If you have a question and don't see an answer below, shoot us a message!
Leica Lino P5$280.00 View details | Leica Lino L2From $215.00 View details | Leica Lino L2P5From $475.00 View details | Leica Lino L6From $445.00 View details | |
---|---|---|---|---|
Technical Data | ||||
Laser |
5 points (red)
|
2 lines (red/green)
|
2 lines + 4 points (red/green)
|
3 lines (red/green)
|
Beam direction/fan angle |
—
|
vertical / >170°, horizontal / >180°
|
vertical / >170°, horizontal / >180°
|
360°
|
Point direction |
up, down, right, left, front (90°/180°)
|
—
|
up, down, right, left, front (90°/180°)
|
up, down, right, left, front, back (90° / 180°)
|
Range |
30 m (82 ft)
|
25 m (82 ft) (red) / 35 m (115 ft) (green)
|
25 m (82 ft)
|
25 m (82 ft) (red) / 35 m (115 ft) (green)
|
Range with receiver |
—
|
80 m (262 ft)
|
80 m (262 ft)
|
70 m (230 ft)
|
Levelling accuracy |
± 0.2 mm/m or ± 1.0 mm @ 5m or ± 2.0 mm @ 10m ± 0.002 in/ft or ± 0.04 in @ 16ft or ± 0.08 in @ 33ft
|
± 0.2 mm/m or ± 1.0 mm @ 5m or ± 2.0 mm @ 10m ± 0.002 in/ft or ± 0.04 in @ 16ft or ± 0.08 in @ 33ft
|
± 0.2 mm/m or ± 1.0 mm @ 5 m or ± 2.0 mm @ 10 m ± 0.002 in/ft or ± 0.04 in @ 16 ft or ± 0.08 in @ 33 ft
|
± 0.2 mm/m or ± 1.0 mm @ 5m or ± 2.0 mm @ 10m ± 0.002 in/ft or ± 0.04 in @ 16ft or ± 0.08 in @ 33ft
|
Horizontal / vertical line accuracy |
—
|
± 0.3 mm/m (± 0.004 in/ft)
|
± 0.3 mm/m (± 0.004 in/ft)
|
± 0.3 mm/m (± 0.004 in/ft)
|
Point accuracy |
± 0.2 mm/m (± 0.002 in/ft)
|
—
|
± 0.2 mm/m (± 0.002 in/ft)
|
—
|
Self-levelling range |
± 4 °
|
± 4 °
|
± 4 °
|
± 4 °
|
Self-levelling time |
< 3 s
|
< 3 s
|
< 3 s
|
< 3 s
|
Out-of-level warning |
Laser lines blink every 5s
|
Laser lines blink every 5s
|
Laser lines blink every 5s
|
Laser lines blink every 5s
|
Protection class |
IP54 (IEC 60529) dust and splash water
|
IP54 (IEC 60529) dust and splash water
|
IP54 (IEC 60529) dust and splash water
|
IP54 (dust and splash water)
|
Battery type |
Lino Li-Ion battery pack
5200 mAh / 18.7 Wh or 3 x AA Alkaline |
Lino Li-Ion battery pack
5200 mAh / 18.7 Wh or 3 x AA Alkaline |
Lino Li-Ion battery pack
5200 mAh / 18.7 Wh or 3 x AA Alkaline |
Lino Li-Ion battery pack
5200 mAh / 18.7 Wh or 3 x AA Alkaline |
Operating time with Li-Ion battery |
59 h (5 points) – 100 h (2 points) continuous
|
26 h (2 beam) – 44 h (1 beam) continuous
|
26 h (2 beam + 4 points) – 44 h (1 beam + 2 points) continuous (red) / 15 h (2 beam + 4 points) – 28 h (1 beam + 2 points) continuous (green)
|
up to 36 h (3 beam, 50 % power) (red) / up to 11 h (3 beam, 50 % power) (green)
|
Operating time with alkaline battery |
25 h (5 points) – 37 h (2 points) continuous
|
8 h (2 beam) – 13 h (1 beam) continuous
|
8 h (2 beam + 4 points) – 13 h (1 beam + 2 points) continuous (red) / 4 h (2 beam + 4 points) – 7 h (1 beam + 2 points) continuous (green)
|
up to 25 h (3 beam, 50 % power) (red) / up to 8 h (3 beam, 50 % power) (green)
|
Dimensions (L x W x H) |
110 x 60 x 100 mm (4.33 x 2.36 x 3.93 in)
|
110 x 60 x 100 mm (4.33 x 2.36 x 3.93 in)
|
110 x 60 x 100 mm (4.33 x 2.36 x 3.93 in)
|
124 x 107 x 154 mm (4.88 x 4.21 x 6.06 in)
|
Weight with Li-Ion |
530 g (1.17 lbs)
|
530 g (1.17 lbs)
|
530 g (1.17 lbs)
|
781 g (1.71 lbs)
|
Tripod thread |
1/4'’ (+ 5/8’’ with adapter)
|
1/4'’ (+ 5/8’’ with adapter)
|
1/4'’ (+ 5/8’’ with adapter)
|
1/4" (+ 5/8" with adapter)
|
