Leica’s latest green laser technology brings laser line visibility and clarity to the highest level. Green reference lines are easily seen in difficult lighting conditions and over long distances. The Leica Lino L2G’s triple power concept ensures an uninterrupted workflow. You can power your laser by using rechargeable Li-Ion batteries for up to 28 hours on one ch...

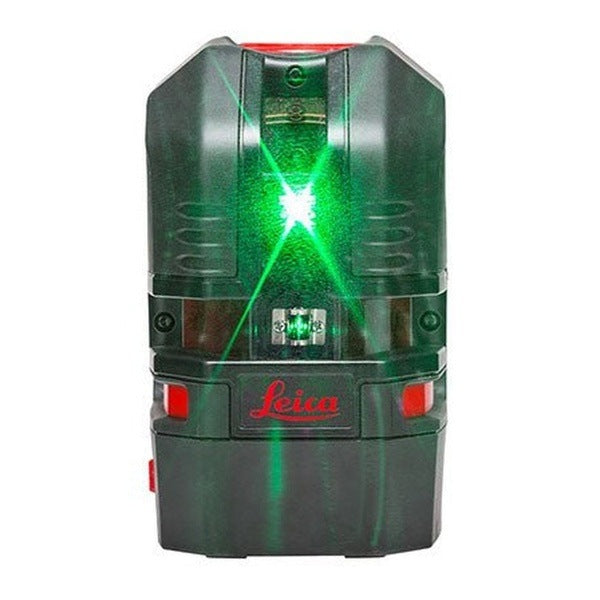

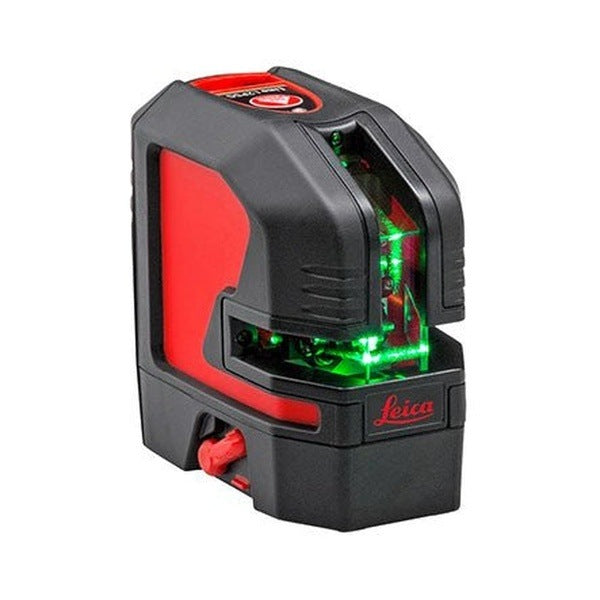

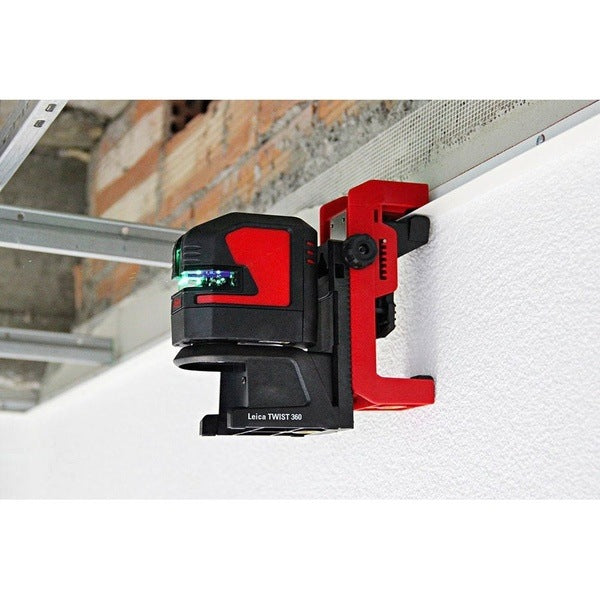

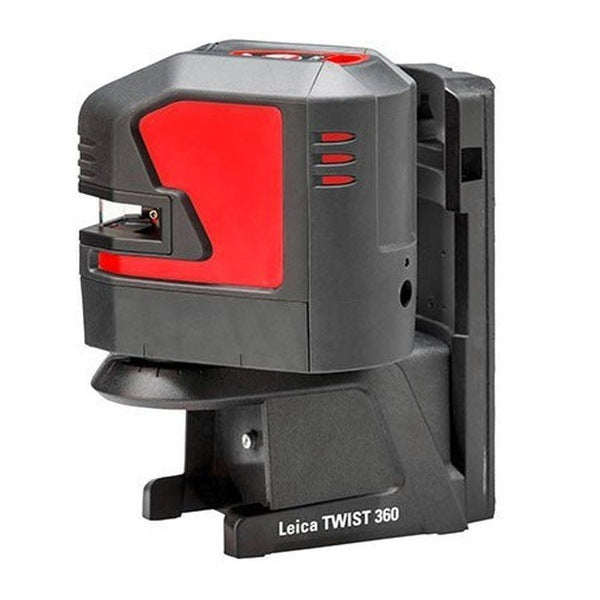

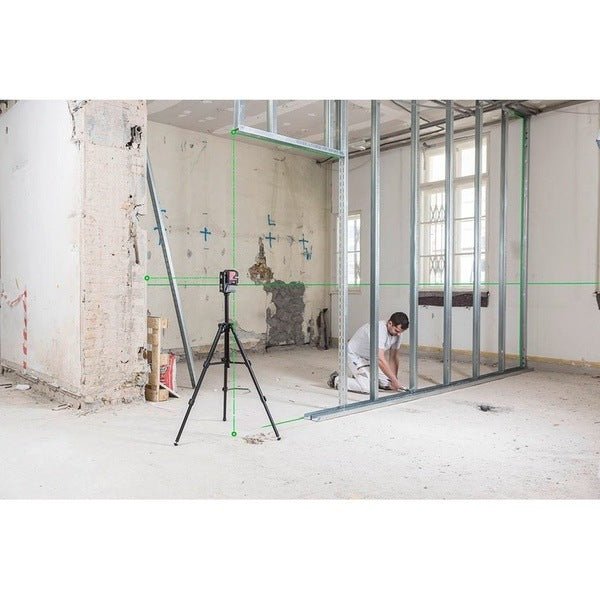

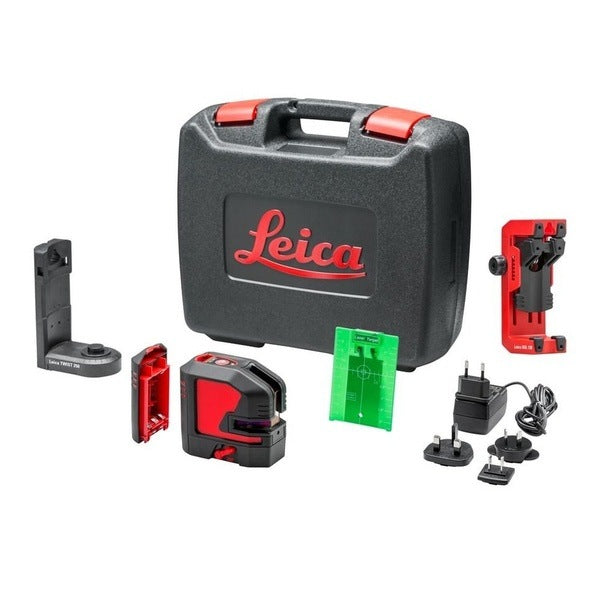

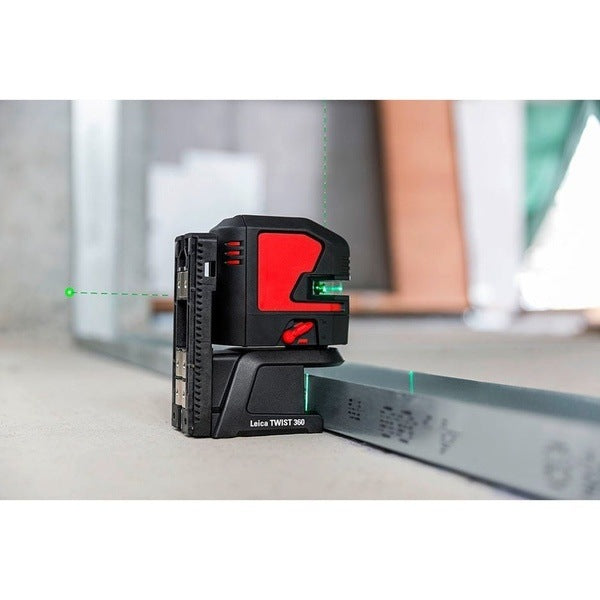

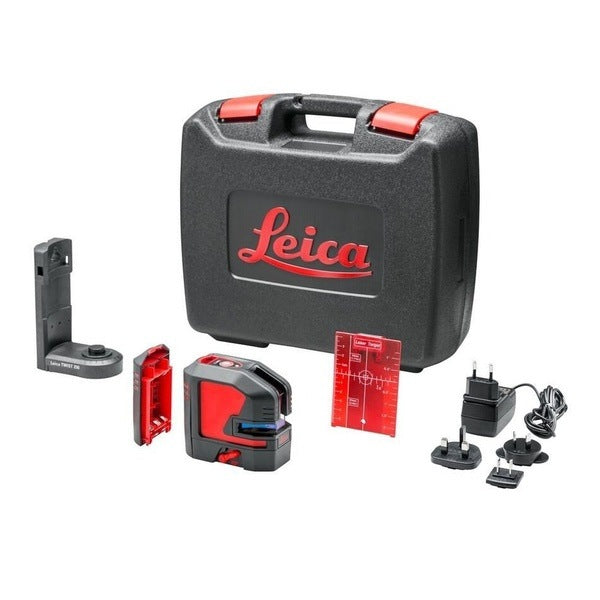

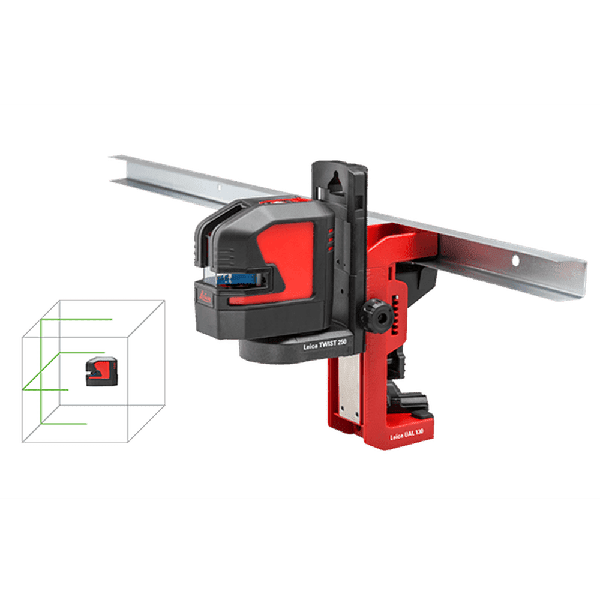

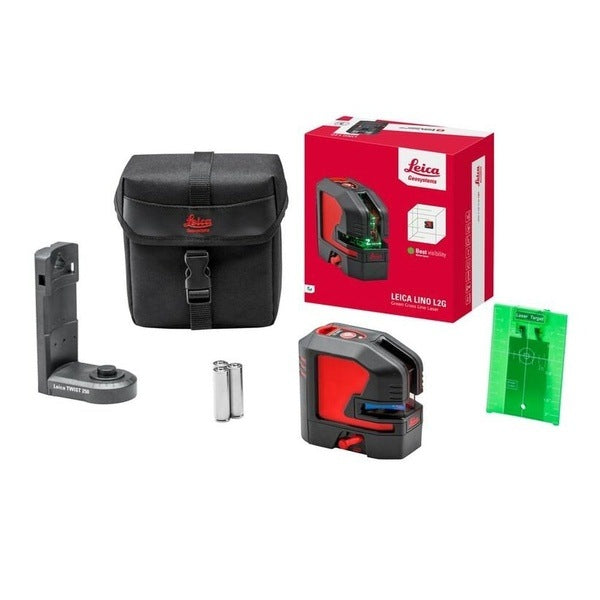

Leica’s latest green laser technology brings laser line visibility and clarity to the highest level. Green reference lines are easily seen in difficult lighting conditions and over long distances. The Leica Lino L2G’s triple power concept ensures an uninterrupted workflow. You can power your laser by using rechargeable Li-Ion batteries for up to 28 hours on one charge. Alternatively, you can use Alkaline batteries or simply its charger. Magnetic smart adapters allow you to quickly position your Lino L2G with absolute precision. You can set up the rotatable adapter over edges and profiles, or attach it to iron pipes, tracks and bars with the addition of the UAL 130 adapter. The Leica Lino L2G is a self-levelling laser. It automatically corrects its positioning when out of level up to ± 4°. The laser beams flash if the tilt is outside this range to prevent errors. The Leica Lino L2G is dust and spray water protected to IP 54 standards and comes in a hard case allowing you to store all accessories safely. Available in either green or red.
Technical Data | |
---|---|
Laser |
2 lines (red/green)
|
Beam direction/fan angle |
vertical / >170°, horizontal / >180°
|
Range |
25 m (82 ft) (red) / 35 m (115 ft) (green)
|
Range with receiver |
80 m (262 ft)
|
Levelling accuracy |
± 0.2 mm/m or ± 1.0 mm @ 5m or ± 2.0 mm @ 10m ± 0.002 in/ft or ± 0.04 in @ 16ft or ± 0.08 in @ 33ft
|
Horizontal / vertical line accuracy |
± 0.3 mm/m (± 0.004 in/ft)
|
Self-levelling range |
± 4 °
|
Self-levelling time |
< 3 s
|
Out-of-level warning |
Laser lines blink every 5s
|
Protection class |
IP54 (IEC 60529) dust and splash water
|
Battery type |
Lino Li-Ion battery pack
5200 mAh / 18.7 Wh or 3 x AA Alkaline |
Operating time with Li-Ion battery |
26 h (2 beam) – 44 h (1 beam) continuous
|
Operating time with alkaline battery |
8 h (2 beam) – 13 h (1 beam) continuous
|
Dimensions (L x W x H) |
110 x 60 x 100 mm (4.33 x 2.36 x 3.93 in)
|
Weight with Li-Ion |
530 g (1.17 lbs)
|
Tripod thread |
1/4'’ (+ 5/8’’ with adapter)
|
