Leica Lino L2P5
Leica Lino L2P5
Share

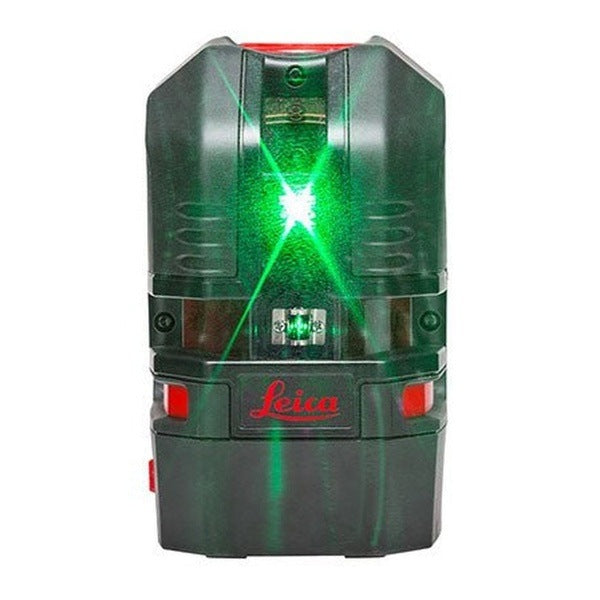

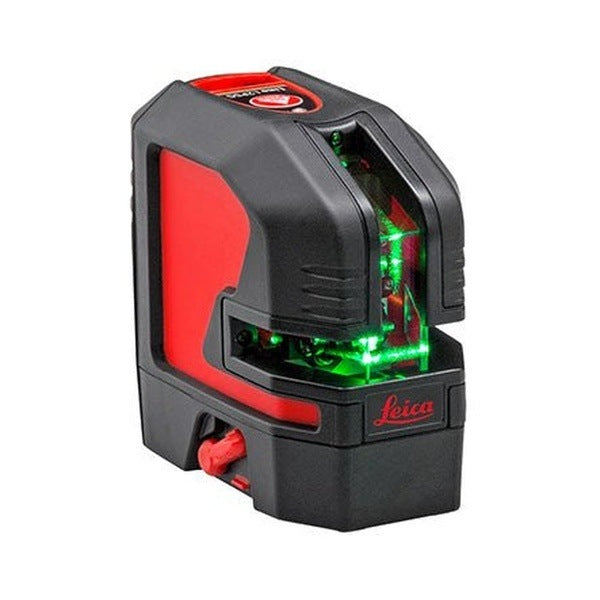

The L2P5G is the ultimate combination of laser line level and point layout. The brilliant green laser light is visible even in bright day, or outdoor work conditions where standard red lasers falter.
The device features a locking pendulum leveling system which ensures accuracy, and auto levels +/- 4 degrees. The chassis of their lasers has been redesigned with durability in mind, and is housed in a IP54 rated enclosure. Construction site durability.

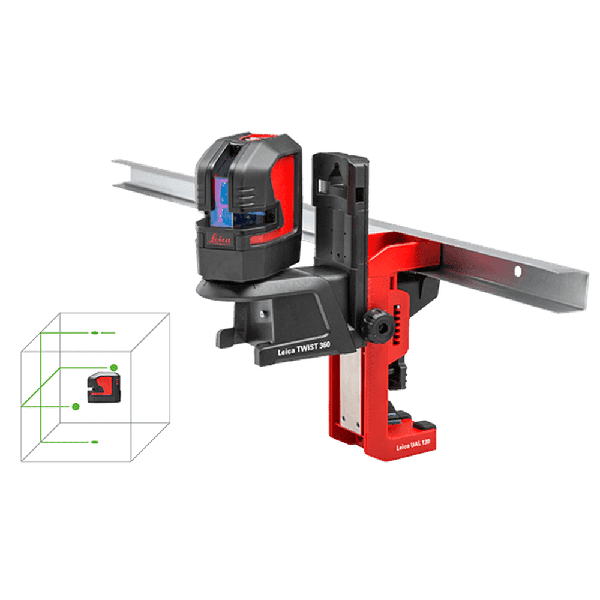

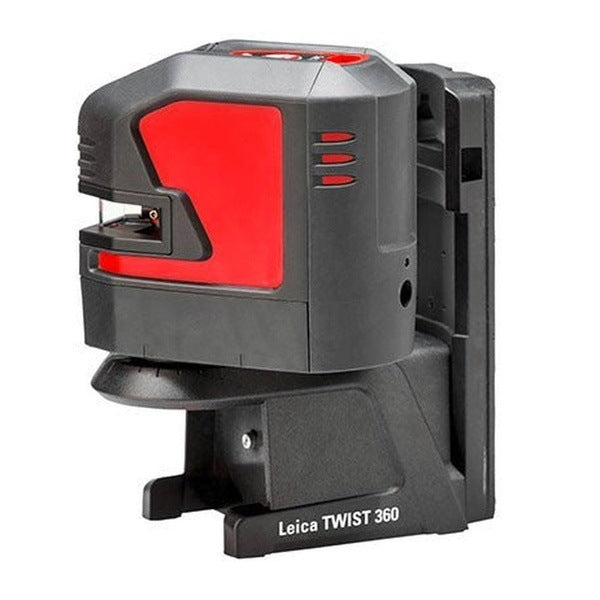

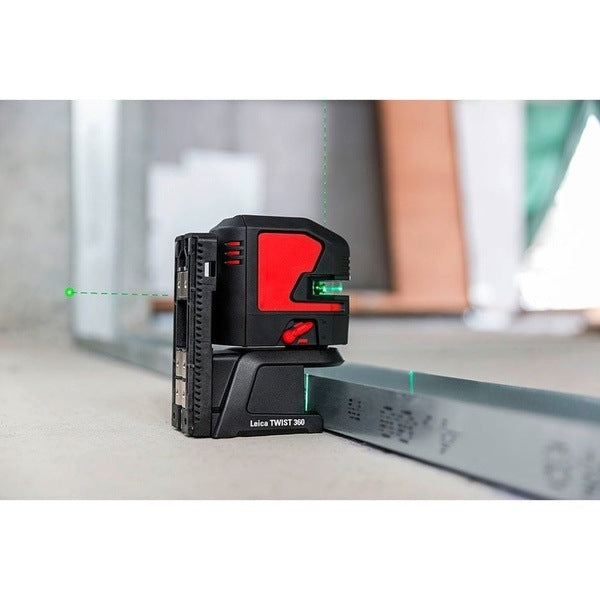

he Leica Lino L2P5G can be easily attached to a variety of surfaces. It's magnetic adapter fits into U shaped profiles. Add the UAL 130 adapter and attach your L2P5G to edges, metal poles, and bars.
Available in red or green.
Regular price
$475.00 USD
Regular price
Sale price
$475.00 USD
Unit price
/
per
Couldn't load pickup availability
| Technical Data | |
|---|---|
Laser |
2 lines + 4 points (red/green)
|
Beam direction/fan angle |
vertical / >170°, horizontal / >180°
|
Point direction |
up, down, right, left, front (90°/180°)
|
Range |
25 m (82 ft)
|
Range with receiver |
80 m (262 ft)
|
Levelling accuracy |
± 0.2 mm/m or ± 1.0 mm @ 5 m or ± 2.0 mm @ 10 m ± 0.002 in/ft or ± 0.04 in @ 16 ft or ± 0.08 in @ 33 ft
|
Horizontal / vertical line accuracy |
± 0.3 mm/m (± 0.004 in/ft)
|
Point accuracy |
± 0.2 mm/m (± 0.002 in/ft)
|
Self-levelling range |
± 4 °
|
Self-levelling time |
< 3 s
|
Out-of-level warning |
Laser lines blink every 5s
|
Protection class |
IP54 (IEC 60529) dust and splash water
|
Battery type |
Lino Li-Ion battery pack
5200 mAh / 18.7 Wh or 3 x AA Alkaline |
Operating time with Li-Ion battery |
26 h (2 beam + 4 points) – 44 h (1 beam + 2 points) continuous (red) / 15 h (2 beam + 4 points) – 28 h (1 beam + 2 points) continuous (green)
|
Operating time with alkaline battery |
8 h (2 beam + 4 points) – 13 h (1 beam + 2 points) continuous (red) / 4 h (2 beam + 4 points) – 7 h (1 beam + 2 points) continuous (green)
|
Dimensions (L x W x H) |
110 x 60 x 100 mm (4.33 x 2.36 x 3.93 in)
|
Weight with Li-Ion |
530 g (1.17 lbs)
|
Tripod thread |
1/4'’ (+ 5/8’’ with adapter)
|
