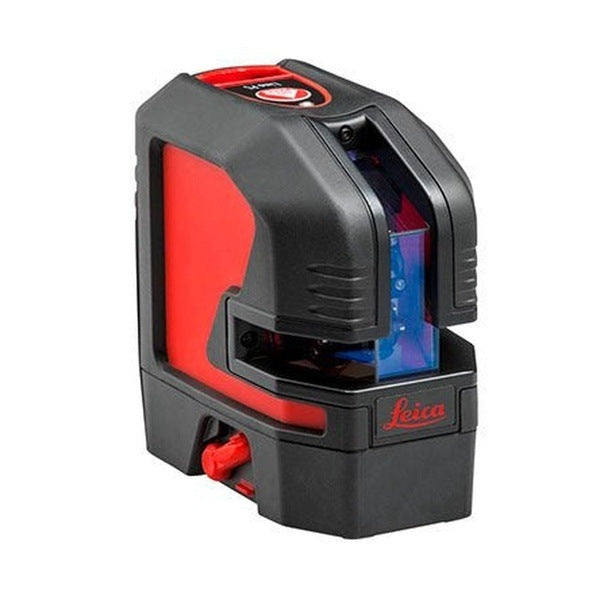

Leica Lino P5
Leica Lino P5
Share

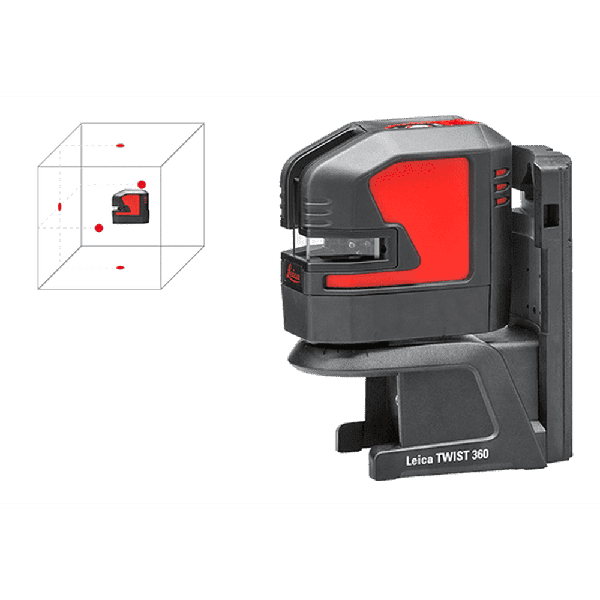

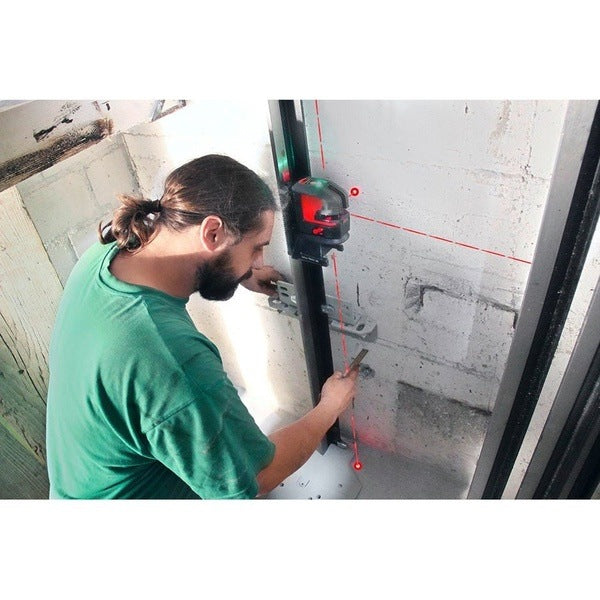

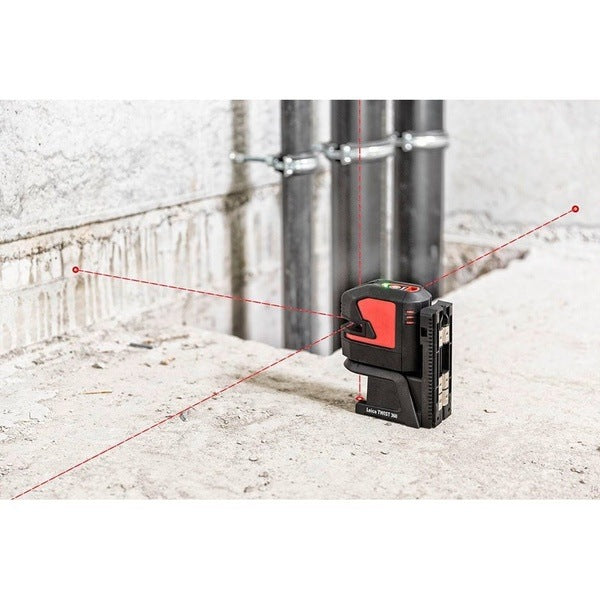

The Leica Lino P5 point laser is very easy to use. At the push of a button, it accurately projects five reference points at exact right angles to one another. Magnetic smart adapters allow you to quickly attach your Leica Lino P5 to edges, profiles, iron pipes, tracks or bars, allowing you to complete your job faster. The Leica Lino P5 automatically adjusts its po...

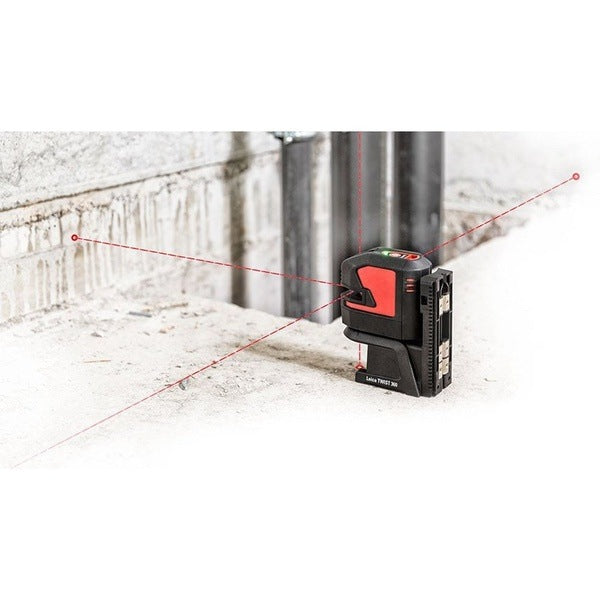

The Leica Lino P5 point laser is very easy to use. At the push of a button, it accurately projects five reference points at exact right angles to one another. Magnetic smart adapters allow you to quickly attach your Leica Lino P5 to edges, profiles, iron pipes, tracks or bars, allowing you to complete your job faster. The Leica Lino P5 automatically adjusts its positioning if it is slightly out of level to ensure the correct transfer of angles and reference points up to ± 4°. Flashing laser points mean that the tilt is outside this limit. The Leica Lino P5 laser has a triple power concept. It comes with Alkaline batteries but it can be operated with the addition of a Li-Ion battery pack, too. The Leica Lino P5 is dust and spray water protected to IP 54 standards. This makes it a tough instrument suitable for all your jobs.
Technical Data | |
---|---|
Laser |
5 points (red)
|
Point direction |
up, down, right, left, front (90°/180°)
|
Range |
30 m (82 ft)
|
Levelling accuracy |
± 0.2 mm/m or ± 1.0 mm @ 5m or ± 2.0 mm @ 10m ± 0.002 in/ft or ± 0.04 in @ 16ft or ± 0.08 in @ 33ft
|
Point accuracy |
± 0.2 mm/m (± 0.002 in/ft)
|
Self-levelling range |
± 4 °
|
Self-levelling time |
< 3 s
|
Out-of-level warning |
Laser lines blink every 5s
|
Protection class |
IP54 (IEC 60529) dust and splash water
|
Battery type |
Lino Li-Ion battery pack
5200 mAh / 18.7 Wh or 3 x AA Alkaline |
Operating time with Li-Ion battery |
59 h (5 points) – 100 h (2 points) continuous
|
Operating time with alkaline battery |
25 h (5 points) – 37 h (2 points) continuous
|
Dimensions (L x W x H) |
110 x 60 x 100 mm (4.33 x 2.36 x 3.93 in)
|
Weight with Li-Ion |
530 g (1.17 lbs)
|
Tripod thread |
1/4'’ (+ 5/8’’ with adapter)
|
