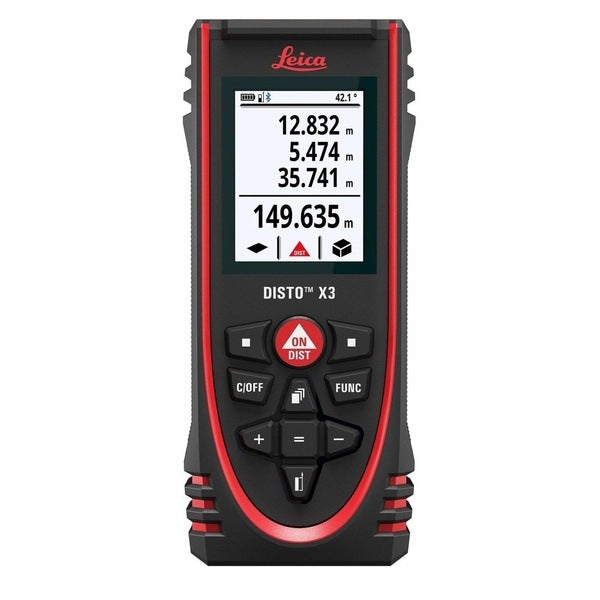

Leica DISTO X3
Leica DISTO X3
Share

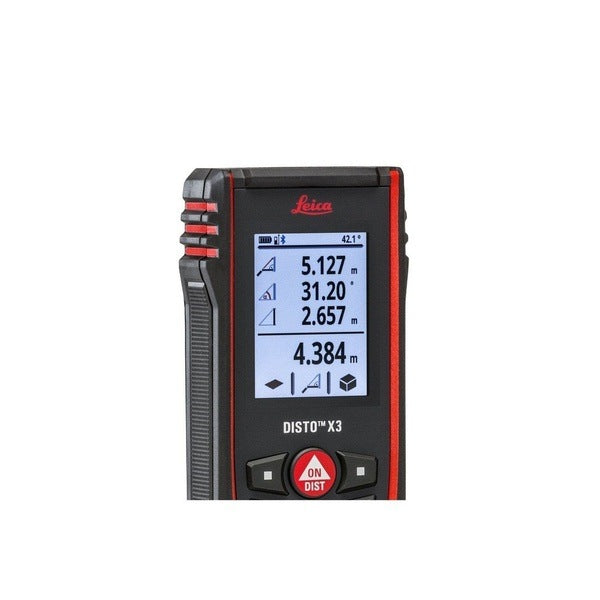

Poor lighting conditions? We can help you lighten up.
The DISTO X3 has a bright, colorized, backlit display for taking measurements in all kinds of lighting conditions, ranging from dark indoor measurements in a basement to bright outdoor measurements.
Take your measurements to the next level.
The X3 is our first DISTO that is compatible with the DST 360, a smart tripod and adapter set that extends the measurement possibilities of your X3. With the DST 360, your X3 turns into a professional measurement station—you can take point to point (P2P) measurements from one location.
Capable of Point-to-Point (P2P) measurement technology. When used with the DST 360, the X3 can combine rotation, angle, and distance data to produce highly accurate Point-to Point (P2P) measurements, which allows you to accurately measure distances between any two points from a third position.
Make this DISTO even smarter.
Use the DISTO Plan App to access Sketch, Document, and Smart Room features to create detailed CAD-ready floor and wall plans, including doors and windows. Export your plans as .DXF or .DWG files.
Measuring | |
---|---|
Typ. distance measuring accuracy |
± 1.0 mm / 1/32 in
|
Range |
0.05 up to 150m / 0.16 up to 492 ft
|
Measuring units |
m, ft, in
|
X-Range Power Technology |
Yes |
Measurements per set of batteries |
up to 4,000
|
Service life of batteries |
up to 8 h
|
Tilt sensor |
Yes |
Tilt sensor accuracy to the laser beam |
± 0.2°
|
Tilt sensor accuracy to the housing |
± 0.2°
|
Units in the tilt sensor |
0.0°, 0.00 %
|
Physical | |
Dimensions |
132 × 56 × 29 mm / 5.20 x 2.20 x 1.14 in (H x W x D)
|
Weight with batteries |
184 g / 0.41 lbs
|
Protection class |
IP 65
|
Digital viewfinder camera |
No |
Multifunctional endpiece |
Yes |
Automatic reference detection for endpiece |
Yes |
Display illumination |
Yes |
Batteries |
type AA 2 × 1.5 V
|
Drop tested |
Up to 2m / 6.56 ft
|
Tripod thread |
1/4"
|
Features | |
Free software for Windows |
Yes |
Free App for iOS and Android |
Yes |
General data interface |
Bluetooth® Smart
|
Memory of last measurements |
20
|
Smart room support |
Yes |
P2P measurement support Requires additional adapter
|
Yes |
Downloads | |
Brochure |
|
Technical Data |
|
User Manual |
