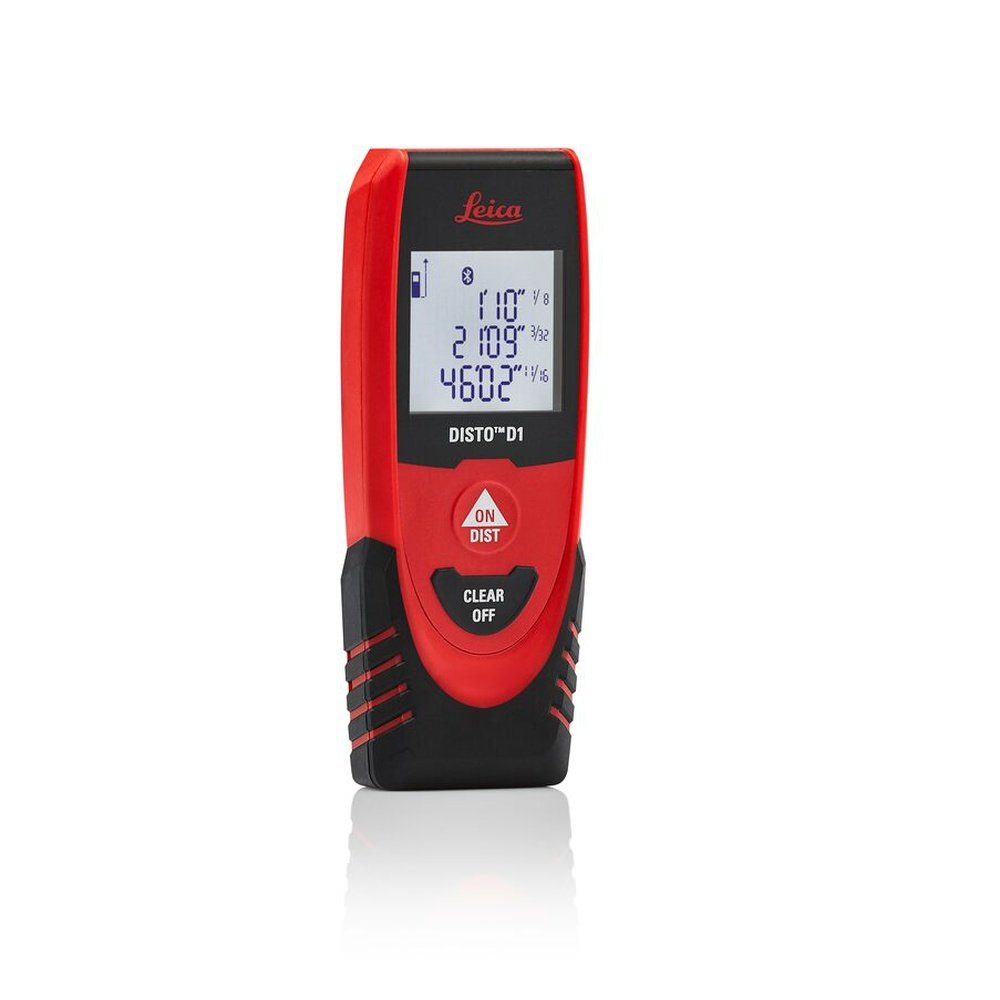

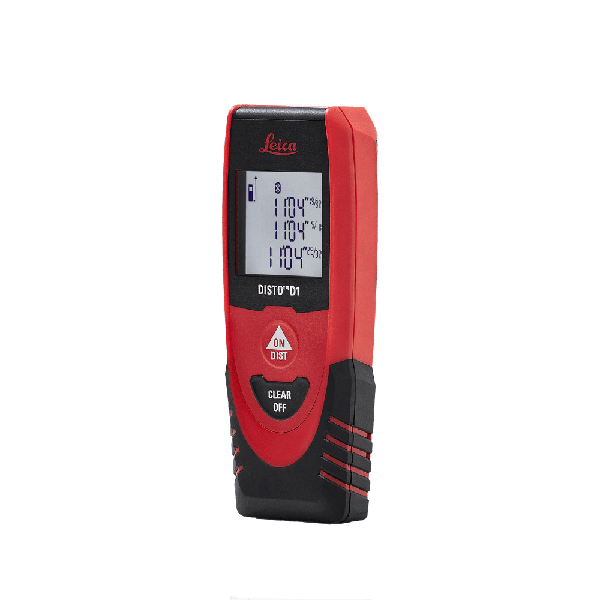

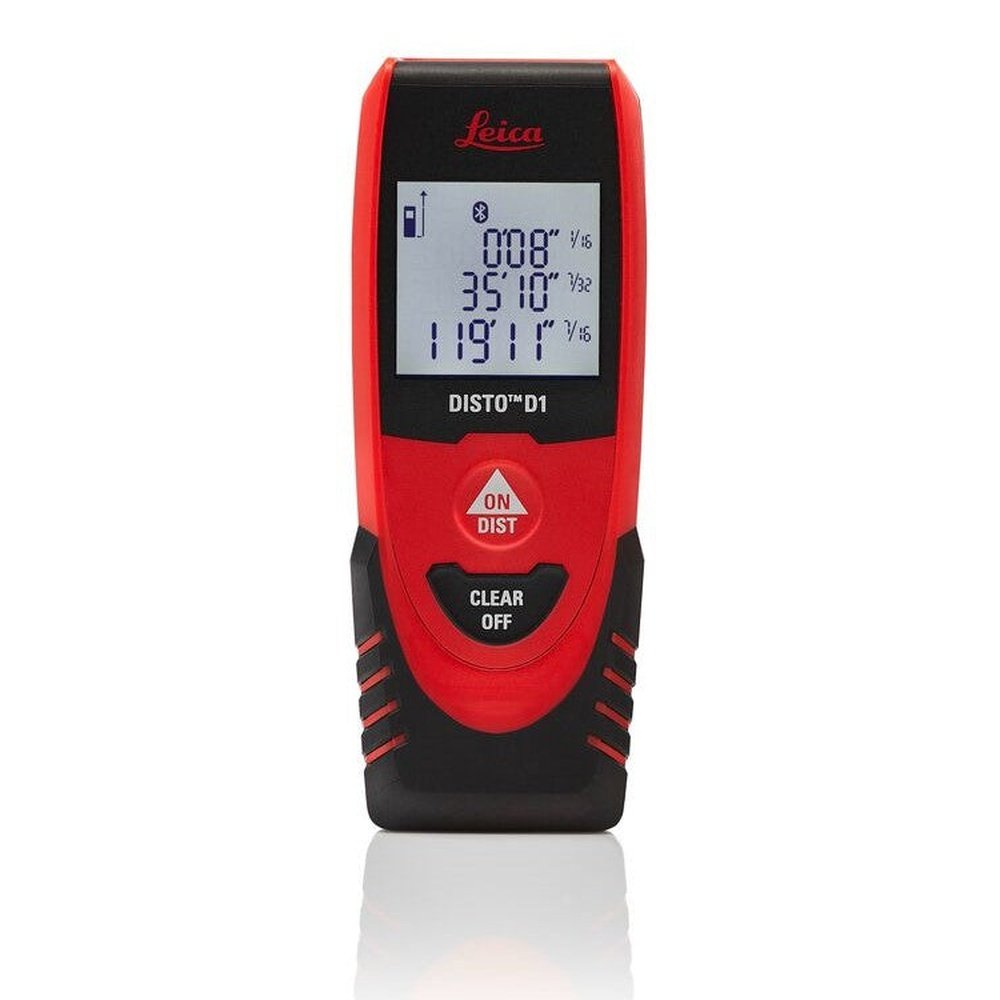

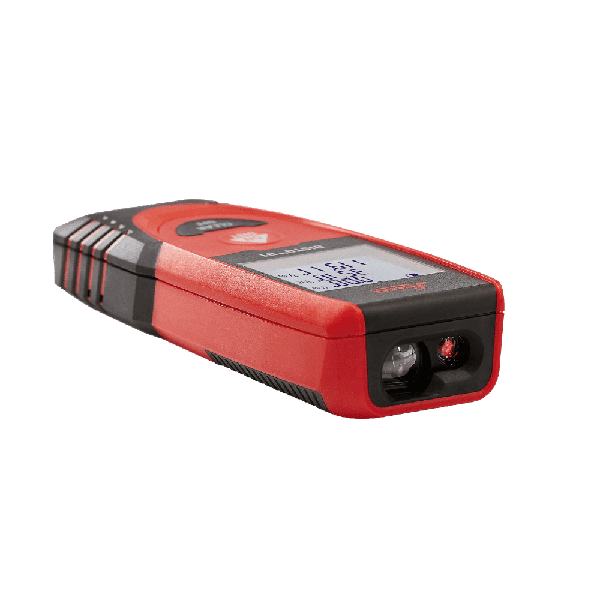

Leica DISTO D1
Leica DISTO D1
Share
Down to the basics.
Not everyone needs functions like height tracking, area, or volume. The D1 is best suited for tasks like measuring for interior carpentry or flooring, checking dimensions for new furniture, or for hanging pictures on a wall.
Accurate and reliable.
It may be small and simple to use, but that doesn’t mean we sacrificed on accur...
Down to the basics.
Not everyone needs functions like height tracking, area, or volume. The D1 is best suited for tasks like measuring for interior carpentry or flooring, checking dimensions for new furniture, or for hanging pictures on a wall.
Accurate and reliable.
It may be small and simple to use, but that doesn’t mean we sacrificed on accuracy. The D1 has just what you’d expect from a Leica DISTO (2mm accuracy), and each D1 is individually certified for accuracy and range.

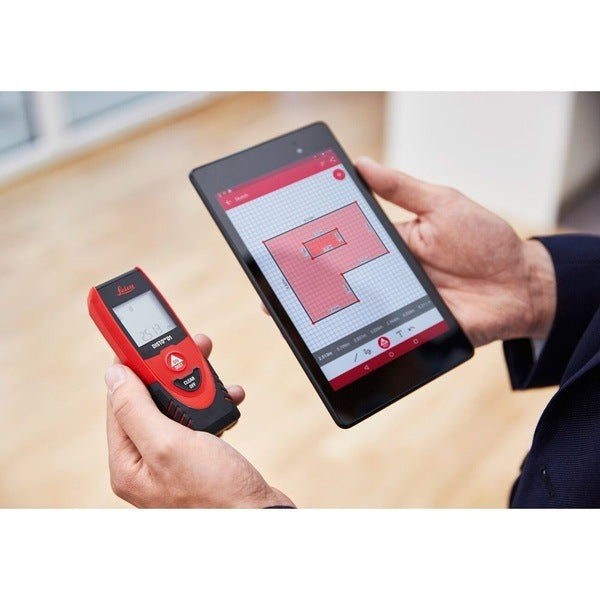

Create digital floor plans.
Pair the D1 with any smartphone or tablet to create digital floor plans on the fly with the DISTO Plan app. All DISTOs include Bluetooth® connectivity.
Measuring | |
---|---|
Typ. distance measuring accuracy |
± 2.0 mm / 1/16 in
|
Range |
0.2 up to 40m / 0.66 up to 131 ft
|
Measuring units |
m, ft, in
|
X-Range Power Technology |
Yes |
Measurements per set of batteries |
up to 10,000
|
Service life of batteries |
up to 20 h
|
Tilt sensor |
No |
Physical | |
Dimensions |
115 × 43.5 × 23.5 mm / 4.53 x 1.71 x 0.93 in (H x W x D)
|
Weight with batteries |
87 g / 0.19 lbs
|
Protection class |
IP 54
|
Digital viewfinder camera |
No |
Multifunctional endpiece |
No |
Automatic reference detection for endpiece |
No |
Display illumination |
Yes |

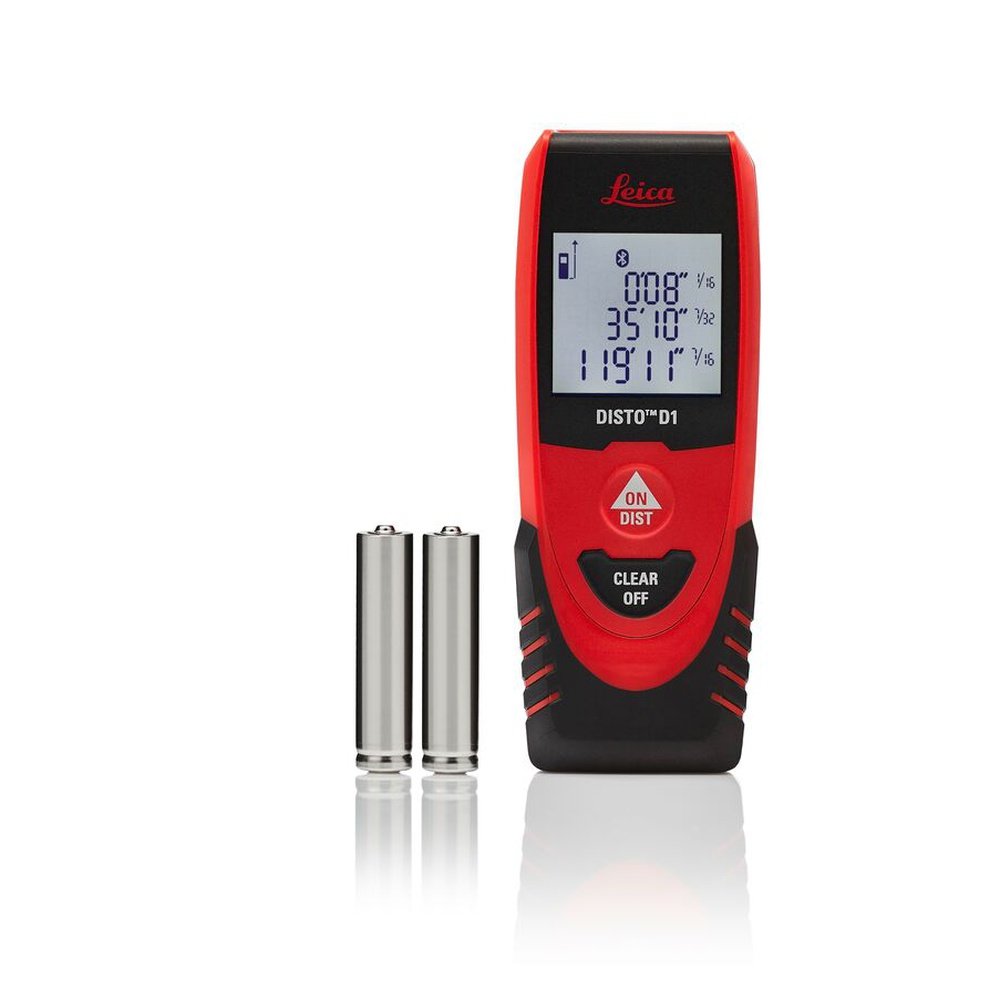

Batteries |
type AAA 2 × 1.5 V
|
Features | |
Free software for Windows |
Yes |
Free App for iOS and Android |
Yes |
General data interface |
Bluetooth® Smart
|
Memory of last measurements |
3
|
Smart room support |
No |
P2P measurement support Requires additional adapter
|
No |
Downloads | |
Technical Data |
|
User Manual |
