iCS20 Laser Interior Finishing Package (Subs.)
iCS20 Laser Interior Finishing Package (Subs.)
Share
The Leica iCON iCS20 motorised construction tool is perfect for capturing 2D and 3D measurement data for interior finishing and projecting installation points. Easily aim at measurement points using the highresolution camera or the laser-point.
- High-resolution cameras for precise aiming
- One-person operation increases productivity
- Simplified 2D and 3D measuremen...
The Leica iCON iCS20 motorised construction tool is perfect for capturing 2D and 3D measurement data for interior finishing and projecting installation points. Easily aim at measurement points using the highresolution camera or the laser-point.
- High-resolution cameras for precise aiming
- One-person operation increases productivity
- Simplified 2D and 3D measurements
- Quickly ready for use due to the automated set-up process

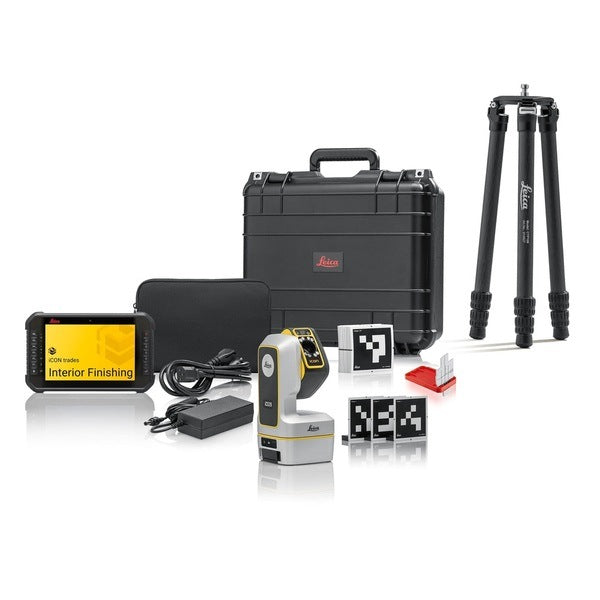

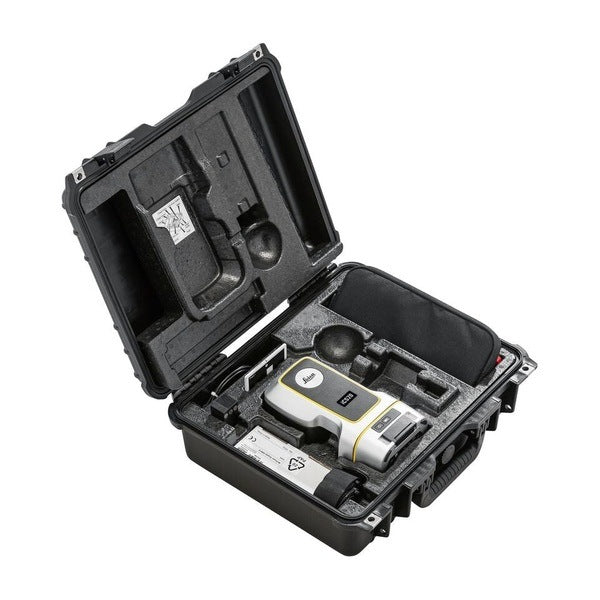

Scope of Delivery:
- Leica iCON iCS20
- Leica iCON trades for Interior Finishing software
- Charger for indoor use
- Leica CSX8 tablet incl. pouch
- GZM3 target plate
- vTarget plates incl. stands
- vTarget stickers
- Carry case
- Leica CTP108 Carbon tripod
Technical Data
| 3D Point Accuracy | ||
|---|---|---|
Laser Combination of angle and distance measurement
|
1.0 mm @ 10 m (0.04 in @ 33 ft)
2.5 mm @ 50 m (0.10 in @ 164 ft) 10.5 mm @ 250 m (0.41 in @ 820 ft)* |
1.0 mm @ 10 m (0.04 in @ 33 ft)
2.0 mm @ 50 m (0.08 in @ 164 ft) 8.0 mm @ 250 m (0.31 in @ 820 ft)* |
vPen |
1.5 mm @ 10 m (0.06 in @ 33 ft)**
|
1.0 mm @ 10 m (0.04 in @ 33 ft)
|
vSphere |
3.0 mm @ 50 m (0.12 in @ 164 ft)**
|
1.0 mm @ 10 m (0.04 in @ 33 ft)
|
vPole tip |
3.0 mm @ 50 m (0.12 in @ 164 ft)****
|
3.0 mm @ 50 m (0.12 in @ 164 ft)****
|
| Angular Measurement | ||
Standard Deviation ISO 17123-3 Accuracy Hz and V
|
5" (1.54 mgon)
|
3" (0.93 mgon)
|
Working range |
horizontal (Hz): 360°, vertical (V): 290°
|
horizontal (Hz): 360°, vertical (V): 290°
|
| Distance Measurement | ||
Reflectorless range (Kodak White) Kodak White, 90% reflective
|
0.3 to 50 / 250 m (0.98 - 164 / 820 ft)*
|
0.3 to 50 / 250 m (0.98 - 164 / 820 ft)*
|
Reflectorless Range (Kodak Gray) Kodak Gray, 18% reflective
|
0.3 to 50 / 120 m (0.98 - 164 / 394 ft)*
|
0.3 to 50 / 120 m (0.98 - 164 / 394 ft)*
|
Standard prism (GPR1) Range |
3.0 to 50 / 250 m (9.84 - 164 / 820 ft)*
|
3.0 to 50 / 250 m (9.84 - 164 / 820 ft)*
|
Reflective tape (GZM31) Range |
1.0 to 50 / 150 m (3.28 - 164 / 492 ft)*
|
1.0 to 50 / 150 m (3.28 - 164 / 492 ft)*
|
vTarget (CVT3, CVT6) Range |
1.2 to 40 m (3.94 - 131 ft)***
|
1.2 to 40 m (3.94 - 131 ft)***
|
vPen Range |
0.7 to 10 m (2.30 - 33 ft)**
|
0.7 to 10 m (2.30 - 33 ft)**
|
vSphere Range |
1.5 to 50 m (4.92 - 164 ft)**
|
1.5 to 50 m (4.92 - 164 ft)**
|
Non-Prism / Any surface Accuracy |
1.0 mm @ 10 m (0.04 in @ 33 ft)
1.5 mm @ 50 m (0.06 in @ 164 ft) 6.0 mm @ 250 m (0.24 in @ 820 ft)* |
<1.0 mm @ 10 m (<0.04 in @ 33 ft)
1.5 mm @ 50 m (0.06 in @ 164 ft) 6.0 mm @ 250 m (0.24 in @ 820 ft)* |
Standard prism (GPR1) Accuracy |
1.5 mm @ 50 m (0.06 in @ 164 ft)
3.5 mm @ 250 m (0.14 in @ 820 ft)* |
1.5 mm @ 50 m (0.06 in @ 164 ft)
3.5 mm @ 250 m (0.14 in @ 820 ft)* |
Reflective tape (GZM31) Accuracy |
1.5 mm @ 50 m (0.06 in @ 164 ft)
2.5 mm @ 150 m (0.08 in @ 492 ft)* |
1.5 mm @ 50 m (0.06 in @ 164 ft)
2.5 mm @ 150 m (0.08 in @ 492 ft)* |
Laser dot size |
17.2 x 27.3 mm @ 50 m (0.68 in x 1.41 in @ 164 ft)
|
17.2 x 27.3 mm @ 50 m (0.68 in x 1.41 in @ 164 ft)
|
| Automatic Aiming | ||
Standard prism (GPR1) |
3.0 to 250 m (9.84 to 820 ft)*
|
3.0 to 250 m (9.84 to 820 ft)*
|
vTarget |
1.2 to 40 m (3.94 to 131 ft)***
|
1.2 to 40 m (3.94 to 131 ft)***
|
| Camera | ||
Overview camera (diagonal) FOV |
27.6° (4.91 m @ 10 m / 16 ft @ 33 ft) / 12.33 MP
|
27.6° (4.91 m @ 10 m / 16 ft @ 33 ft) / 12.33 MP
|
On-Axis camera (diagonal) FOV |
7.5° (1.31 m @ 10 m / 4.29 ft @ 33 ft) / 12.33 MP
|
7.5° (1.31 m @ 10 m / 4.29 ft @ 33 ft) / 12.33 MP
|
Fish-eye camera (circular) FOV |
~200° (circular) / 13.31 MP
|
~200° (circular) / 13.31 MP
|
Zoom |
16x
|
16x
|
| General | ||
Motorization |
Motorized (robotic upgrade possible)
|
Robotic
|
Direct drives |
180°/s
|
180°/s
|
Tilt compensation range |
±3°
|
±3°
|
Interfaces |
USB-C (2.0), WLAN
|
USB-C (2.0), WLAN
|
Weight |
3.37 kg | 7.43 lb
|
3.37 kg | 7.43 lb
|
Dust / Water / Humidity Rating |
IP54
|
IP54
|
Operating temperature |
-20°C to +50°C | -4°F to +122°F
|
-20°C to +50°C | -4°F to +122°F
|
Charging temperature |
0°C to +60°C | 32°F to +140°F
|
0°C to +60°C | 32°F to +140°F
|
Storage temperature |
-25°C to +70°C | -13°F to +158°F
|
-25°C to +70°C | -13°F to +158°F
|
| Power Management | ||
Battery |
Rechargeable Li-Ion
|
Rechargeable Li-Ion
|
Operating Time |
> 8h
|
> 8h
|
Charging Time |
70% in 1h, 100% in 2h
|
70% in 1h, 100% in 2h
|
| Unit | |
|---|---|
iCS Unit |
|
| Software | |
Included Software |
|
Software Type |
Subscription
|
| Accessories | |
Included Accessories |
|
| Documents | |
Brochure |
|
Technical Data |
|
User Manual |
|
