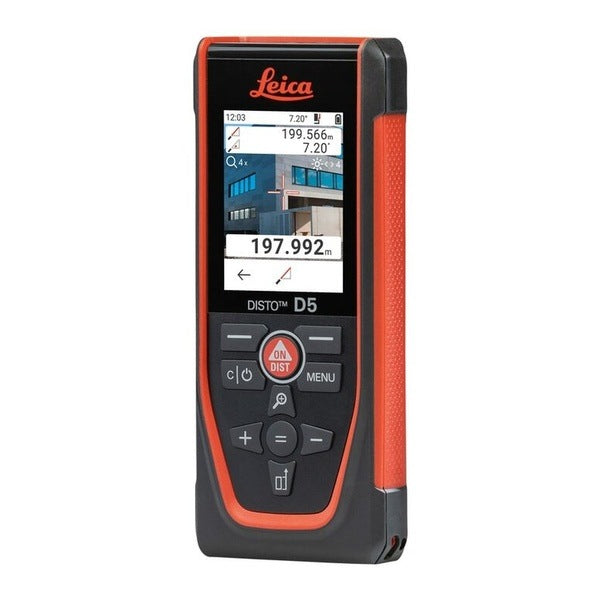

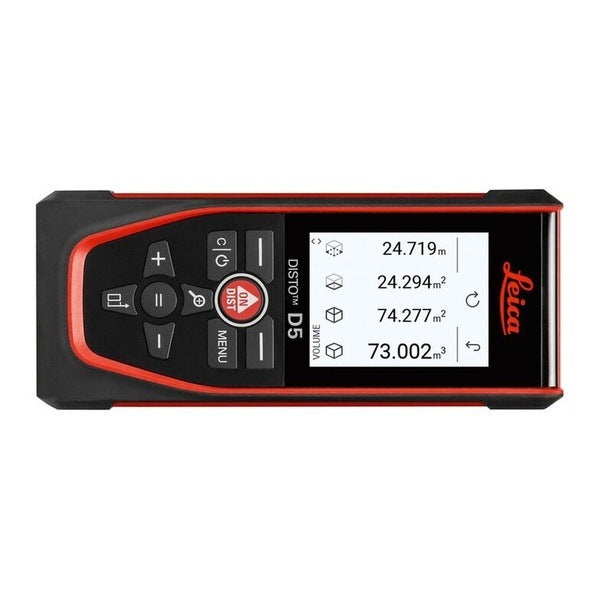

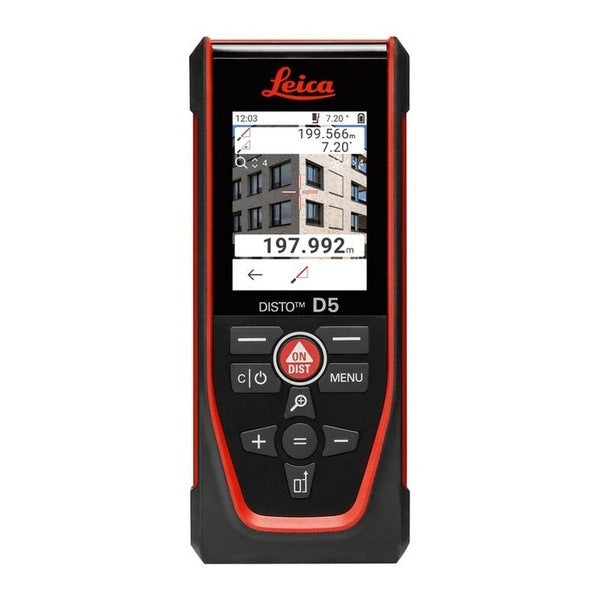

The Leica DISTO D5 is particularly suitable for distance measurements in outdoor areas. Due to the digital Pointfinder, aiming is no problem even in sunshine and at very long distances. Both the target and the measurement results can be seen very clearly on the large display with IPS technology.
For maximum accuracy, the measurement can be triggered by gestures, which is a distinc...
The Leica DISTO D5 is particularly suitable for distance measurements in outdoor areas. Due to the digital Pointfinder, aiming is no problem even in sunshine and at very long distances. Both the target and the measurement results can be seen very clearly on the large display with IPS technology.

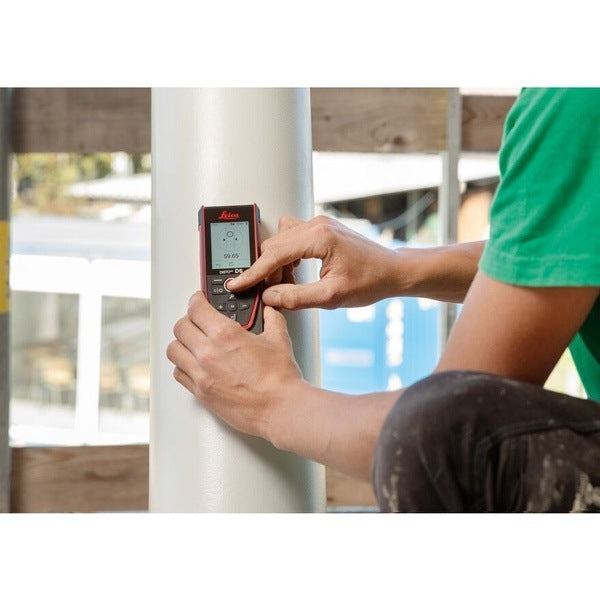

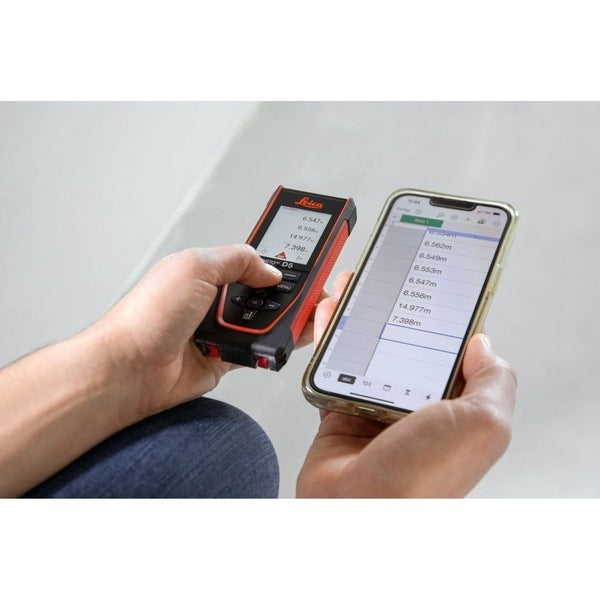

For maximum accuracy, the measurement can be triggered by gestures, which is a distinct advantage, especially over long distances. High flexibility is offered by various functions, such as Smart Horizontal Mode, height tracking, profile or angle measurements. This means that any measurement situation on the construction site can be solved quickly and efficiently. The data can then be transferred to the DISTO Plan app or individual templates, e.g. in Excel, and processed further to support an efficient and error-free digital workflow.
Measuring | |
---|---|
Typ. distance measuring accuracy |
± 1.0 mm / 1/32 in
|
Range |
0.05 up to 200m / 0.07 up to 660 ft
|
Measuring units |
m, ft, in
|
X-Range Power Technology |
Yes |
Measurements per set of batteries |
up to 5,000
|
Service life of batteries |
up to 10 h
|
Tilt sensor |
Yes |
Tilt sensor accuracy to the laser beam |
± 0.2°
|
Tilt sensor accuracy to the housing |
± 0.2°
|
Units in the tilt sensor |
0.0°, 0.00 %
|
Physical | |
Dimensions |
144 x 60 x 24 mm / 5.67 x 2.36 x 0.94 in (H x W x D)
|
Weight with batteries |
180 g / 0.39 lbs
|
Protection class |
IP 54
|

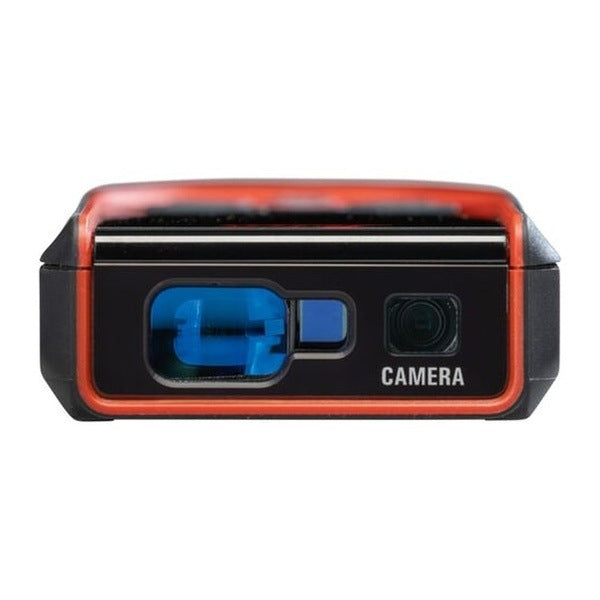

Digital viewfinder camera |
Yes |

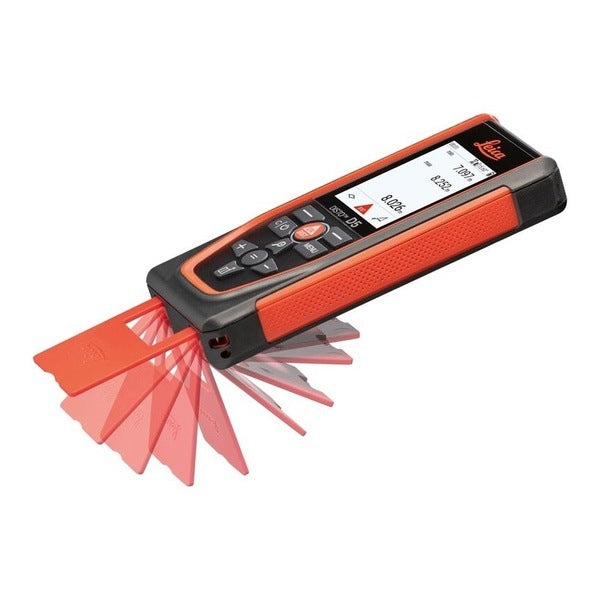

Multifunctional endpiece |
Yes |
Automatic reference detection for endpiece |
Yes |
Display illumination |
Yes |
Batteries |
USB C rechargeable
|
Tripod thread |
1/4"
|
Features | |
Free software for Windows |
Yes |
Free App for iOS and Android |
Yes |
General data interface |
Bluetooth® v5.0
|
Memory of last measurements |
50
|
Smart room support |
Yes |
P2P measurement support Requires additional adapter
|
No |
